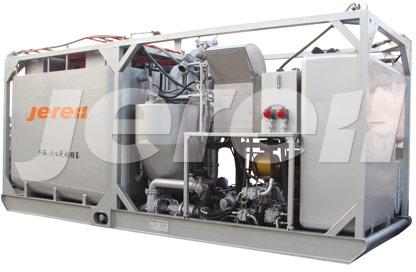

Skid Mounted Batch Mixer

We are offering skid mounted batch mixer.
features:
• scientific design of manifold by using l-matrix algorithm maximizes the slurry mixing capacity.
• mtbf (mean time between failures) statistics solve quality problems of wearing parts.
• mttf (mean time to failure) statistics help formulate more economical maintenance cycle.
• professional ergonomic design optimizes size and psychological correction per human dimensions in different regions, enhancing product satisfaction.
• adhering to professional industrial color science with sedan interior style.
• special chassis adapt to all-weather, all-terrain operations.
specifications:
model skid mounted batch mixer
type skid mounted batch mixer skid mounted electric batch mixer skid mounted electric batch mixer (zone ii)
engine cat c7 abb m2ja 315l4b abb m2ja 315l4b
m³kp280sma4+m³jp160mlc4
pump drive funkdurst
centrifugal pump recirculating pump: 6×5×11 (two) recirculating pump: 6×5×11 (two) recirculating pump: 6×5×11 (two)
batch mixing tank capacity 2×8 m³ (50 bbl)
2×10 m³ (60 bbl)
2×12 m³ (75 bbl)
1×16 m³ (100 bbl)
1×20 m³ (120 bbl) 2×8 m³ (2×50 bbl) 2×8 m³ (2×50 bbl)
slurry density range 8.3～22 ppg
(1～2.6 gcm³)
max. Mixing capacity 14.5 bpm
(2.3 m³min)
mixing method injection mixer
