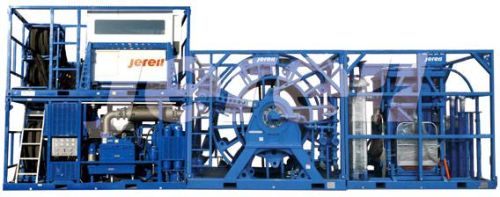

Skid Mounted Coiled Tubing Unit

We are offering skid mounted coiled tubing unit.
features
• the detachable reel design can meet crane requirements on small offshore platforms.
• the design of bop backup system can meet customer requirements of dual bops, expanding the operation of equipment.
• modular design for various components in the skid-mounted ctu is applicable for lifting on offshore platforms.
• equipped with driver interface for yard spooler and tubing blower, extending the operating range of ctu.
• standard serial numbers for hydraulic lines ensures worldwide standardization of jereh’s ctu, which is easy for maintenance and overhaul.
specifications:
model skid mounted coiled tubing unit
type rig safe (explosion-proof type is optional)
engine ddc s60 (optional: cat c15)
reel lggt 140-80-70 (quick-in-drum is optional) lggt 120-72-70 (quick-in-drum is optional)
reel capacity 2"-4,500 m (1.75"-5,500 m) 1.5"-5,500 m (1.75"-3,900 m)
injector model zrt-80 k zrt-60 k
injector continuous pulling capacity 36,000 kg (80,000 lb) 27,000 kg (60,000 lb)
injector continuous subbing capacity 18,000 kg (40,000 lb) 13,500 kg (30,000 lb)
well-control device specification 4.06" (optional:3.06") 3.06" (optional: 2.56")
max. Working pressure 105 mpa (15,000 psi) (optional: 70 mpa) 105 mpa (15,000 psi) (optional: 70 mpa)
