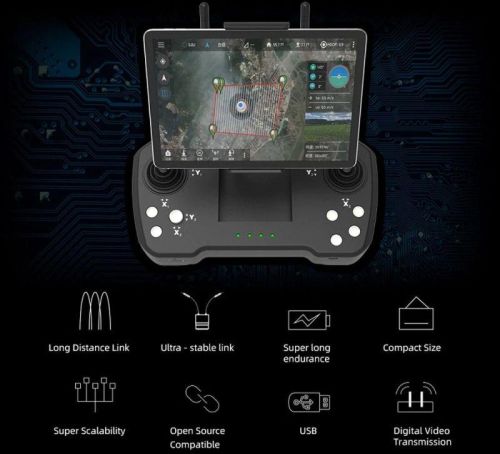

SkyDroid T12 Remote Controller

Advantages

• Build in high efficiency antenna to avoid delay in digital transmission. For safety flying.
• Build in intelligent communication. Increase the stability of long distance transmission. Dual antenna dual module.
• Supported by FHSS technology. The longer distance can reach 20km.
• Hall sensor gimbal with permanent magnetic sensor make longer life to 30 years. Military grade anti dust protective gimbal cover.
• Remote dimming camera with &w LED can capture video clearly at night.
• Bluetooth plus USB wire provide reliable link up.
• 24hrs continues working with one charge.
• Legal 100mw output power comply with related certificate for export.
• Battery is MSDS certified so it is allowable to carry on the plane.

Features

• Digital video transmission
• H264 encoded low latency stream
• Built-in high efficiency antenna
• Dual module radio link
• Powered by FHSS technology
• Max distance up to 20km
• Hall sensor gimbal with permanent magnets
• Industry grade anti-dust protective gimbal cover
• Bluetooth and USB for reliable link to smart device
• 24h possible with one charge
• MSDS certified so it is allowable to carry on the plane

Air unit and camera

• Number of channels : 12
• Working voltage : 4.5-5.5v
• Working Temperature: -10°C to +50°C
• Camera Working Current: 140mA
• Receiver Working Current: 180mA
• Air Unit Dimension: 51x41x13mm
• Camera Dimension: 32.2×29.8×26.8mm
• Air Unit Weight: 14g
• Camera Weight: 15.6g

In the box

• 1x T12 transmitter
• 1x R12 receiver
• 1x Digital video camera
• 2x rubber dustproof gimbal covers
