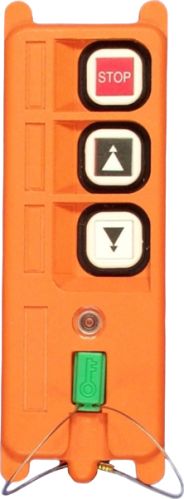

Industrial Radio Remote Control System

Product introduction：
s-2 features
2 single step pushbuttons
a key magnetic
low cost, low consumption, 2 aa batteries last up to 4months
safety code: over 4.3 billion unique id code available.
temperature range: -40? ~ 85?
enclosure protection class: ip 65
two operation buttons,and one stop button
control up to 4 points
with battery voltage warning device,the power is cut off during low power.
safety key switch to prevent from unauthorized.
uset the interface functions by computer interface.
3 operation buttons can be set as to mutual inhibition or not.
spare a key can be set to boot, speed up, jump strokes, ordinary functions.
control distance: up to 100 meters
transmitter power:dc 3v (2 alkaline batteries can be used 5 4 months)
receiver power: 440v ac
output contact capacity: 5 amp sealed relay output (ac 250v/10a relays, 5 amp fuse).
standard configuration:
transmitter 1 (with strap)
receiver 1
receiver comes with 1 m connection cable
operation and maintenance manual
apply: single hook, single-speed electric hoist or hoist type4 contacts about traffic and industrial control with a remote control.
