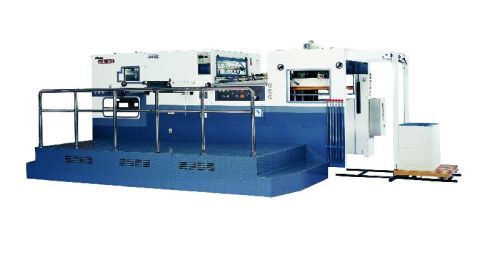

SL-1060C Die Cutting & Creasing Machine

To keep up with the set international standards, we have incorporated the latest machines and cutting-edge technology to sternly examine the material used for production. We follow pre-defined quality rules to make sure that the offered array of products is as per the exact customers' demand and need.

Product Details :

• The machine is key equipment to die-cutting, creasing, and cold embossing paper cassette, box and label etc.
• High precision indexing mechanism, electronic cam and encoder, pneumatic-lock plate, air clutch, overload protection system, unique drive gear, locating system, plus  high speed and even feeding unit ensure smooth feeding, accurate location, even delivery.
• Electricity system adopts PLC control, man-machine interface, photoelectric detection, light & sound alarm and electric case chiller etc., ensuring convenient and safe operation. Interface shows working state and trouble elimination.
• The key parts, control system and fastener are all imported. This machine is of stable pressure, accurate location, high speed, safety and reliability in operation.

Standard features of each section of this machine :

• Feeder

  • Pre-loading and secondary hoist system to allow continual running during pile changes.
  • Feeder table will accept standard pallet or pre-loading unit.
  • Adjustable air blow enabling efficient sheet separation on the full range of raw materials.
  • Both push and pull side lays on both the near and off side of the machine.
  • Both front lays and side lays fitted with electronic detection to prevent registration errors of badly position sheets.
  • Double-sheet detection device fitted on the lay board.
  • High specification Japanese Nitta feeder belts for maximum stability during sheet transfer.
  • Electronically controlled feeder pump, ensuring accurately fed sheets to the front lays.
  • High efficiency/ low maintenance vacuum pump.
• Press Section

  • Standard cutting rule height. (23.80mm)
  • 7mm thick high Rockwell hardened steel plates. (optional) Or 5mm thick hardened steel plate combined with a 2mm hard or soft plate facility to allow matrix to be saved on regularly run products.
  • High specification, heat treated steel drive Worm and bronze Wheel main drive. Toggle action die cutting movement.
  • Photoelectric sheet detection at every stage of the sheet transfer throughout the machine.
  • Standard 2x cutting chases complete with hardened steel chase backing plates (Centerline designs included as required).
  • Gearbox lubrication chiller unit that ensures optimum bearing temperatures at high speed production.
  • Lightweight aluminum alloy gripper bars complete with pinch grippers.
  • UK Renold high strength extended pitch gripper bar chain.
  • Precision indexing cambox drive for high precision and highspeed gripper movement.
  • Imported high precision synchro drive belt and pulleys.
  • European Pneumatic clutch and brake unit.
  • Torque limiter protect machine when overload
• Delivery Section

  • Delivery front and side jogging, to ensure a neat stack on the delivery table pallet.
  • A sheet sampling system that allows a sheet to be easily removed during production to check cutting and registration to print.
  • Tab inserting unit to enable delivered product to be removed in accurate batches. (optional extra)
  • Quick pile change / non-stop running delivery facility.
  • Involution photoelectric sensor to prevent delivery pallet from going too high and paper rolling up
• Motors

  • Main feeding motor is retard motor with frequency control, stable and reliable
  • Main feeding motor and main delivery motor, double-speed, CHENG PANG,    Shanghai, 1.1Kw
  • Vice feeding motor, CHENG PANG, Shanghai, 0.4Kw
  • Main Motor TECO, Taiwan 11 Kw
  • Pump motor 3 Kw
  • Oil pump motor 0.4Kw
• Electrical

  • Main machine is controlled by Mitsubishi PLC controller easily accessed and repaired in Europe. There are 34 detection points on machine.
  • Toshiba frequency converter, Japan
  • Omron electronic cam, encoder and sensors, Japan.
  • SMS electromagnetic valve
  • 7.5 inch true color interface
  • Interlocking type guard switches used on all machine guards in conjunction with safety relay.
• Lubrication System

  • Taiwan automatic recycle oil pump lubrication system
  • Driving chain Timely lubrication system, Bijur
  • Electric case chiller
  • Powerful base oil chiller
  • Japan SMC air circuit system
