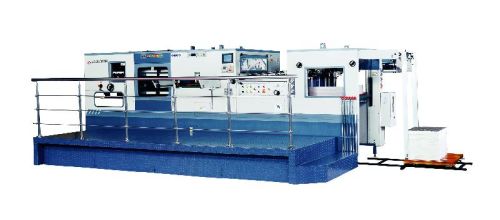

SL-1060MPB-II Die Cutting & Stripping Machine

Trustworthy shipping facilities, competent workforce and prompt delivery of the products make us stand out in the industry. Moreover, our experts keep a strict vigil on the entire procedure.

Features of each section of this machine :

• Feeder

  • Pre-loading and secondary hoist system to allow continual running during pile changes.
  • Feeder table will accept standard pallet or pre-loading unit.
  • Adjustable air blow enabling efficient sheet separation on the full range of raw materials.
  • Double-circuit switch-off security system completely avoid the hazard of cashing to feed by paper pile;
  • Both push and pull side lays on both the near and off side of the machine.
  • Side lays and front lays fitted with electronic detection to prevent registration errors of badly position sheets.
  • Double-sheet detection device fitted on the lay board. And with delayed switch-off function to take off paper on feed bridge when double-sheet problem happens.
  • High specification Japanese Nitta feeder belts for maximum stability during sheet transfer.
  • Electronically controlled feeder pump, ensuring accurately fed sheets to the front lays.
  • High efficiency/ low maintenance Becker vacuum pump (for option)
• Press Section

  • Fully adjustable multiple front lay with electronic detection device to prevent registration errors.
  • Standard cutting rule height. (23.80mm)
  • 7mm thick high Rockwell hardened steel plates. (optional) Or 5mm thick hardened steel plate combined with a 2mm hard or soft plate facility to allow matrix to be saved on regularly run products.
  • Overload protection device avoid crashes caused by overload.
  • High specification, heat treated steel drive Worm and bronze Wheel main drive. Toggle action die cutting movement.
  • Photoelectric sheet detection at every stage of the sheet transfer throughout the machine.
  • Standard cutting chases complete with hardened steel chase backing plates (Centerline designs included as required).
  • Gearbox lubrication chiller unit that ensures optimum bearing temperatures at high speed production.
  • Lightweight aluminum alloy gripper bars complete with pinch grippers.
  • Japanese (or Iwis from Germany or Renould from UK) high strength extended pitch gripper bar chain.
  • High precision indexing cambox drive for high precision and high speed gripper movement.
  • Imported high precision synchro drive belt and pulleys.
  • European Pneumatic clutch and brake unit.
• Stripping Unit

  • Removable stripping frames which allows easy and quick installation of tooling.
  • Frames can be manufactured to accept Centreline stripping tooling.
  • Three movement stripping frames system that allows the most intricate of products to be stripped effectively at high speed.
  • Lower pin frame and stripping pins are supplied as standard.
• Delivery Section

  • Delivery front and side jogging, to ensure a neat stack on the delivery table pallet.
  • A sheet sampling system that allows a sheet to be easily removed during production to check cutting and registration to print.
  • Tab inserting unit to enable delivered product to be removed in accurate batches. (optional extra)
  • Quick pile change / non-stop running delivery facility, (automatic vice delivery unit)
• Electrical

  • Main machine is controlled by Mitsubishi PLC controller easily accessed and repaired in Europe.
  • Main motor speed control inverter manufactured by Fuji, Japan.
  • Machine control encoders and programmable cam positioner Manufactured by Omron Japan.
  • Interlocking type guard switches used on all machine guards in conjunction with safety relay.
