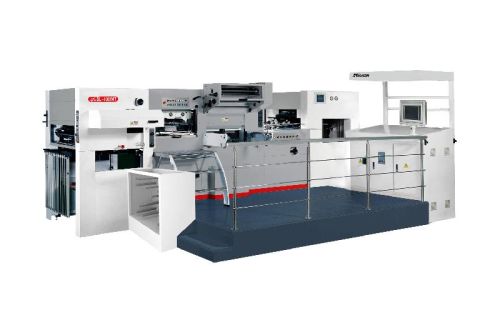

SL-1060MT Die Cutting & Foil Stamping Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The SL-1060MT Die Cutting & Foil Stamping Machine, we supply, is widely renowned for its make and high durability. For the safe storage of our offerings, we have installed our own storage facility. Laced with modern amenities, our facility helps us in furnishing urgent requirements of the clients at a time. We are positioned amidst the renowned names supplying finest array of SL-1060MT Automatic Foil Stamping and Die Cutting Machine.

View More Details

Send Enquiry

Specifications

Max. Sheet Size	1060×760 mm	Holographic Equipment	For option
Min. Sheet Size	400×350 mm	Foil Feeding Unit	Longitudinal 3 shafts Lateral 2 shafts
Max. Die Cutting Size	1055×750 mm	Max. Length of Foil Conveying	Longitudinal φ250 mm Lateral φ200 mm
Max. Stamping Size	1050×745 mm	Independent Heating Zone	20 Zones Highest temp. 180°
Cardboard Specification	90-2000gsm 0.12.0 mm	Max. Working Speed	7500 sheet/h
Corrugated Board	≤4 mm	Gripper Margin	817 mm
Common Stamping Speed	6500 sheet/h	Max. Pressure	260 T
Common Stamping Precision	≤±0.075 mm	Total Power	46 KW
Holographic Stamping Speed	5500 sheet/h	Total Weight	20.5 T
Feeding Pile Height(mm)	1250(max)	Delivery Pile Height(mm)	1000(max)
Holographic Stamping Precision	≤±0.2 mm	Overall SizeL×W×H	6200×4650×2280 mm
