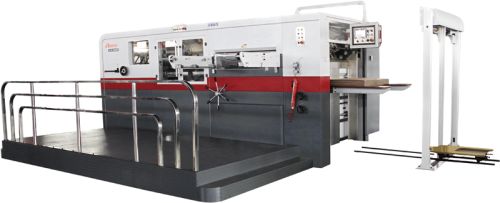

SL-1450MPD Semi Auto Die Cutting & Stripping Machine

To offer complete satisfaction to the clients, we ensure that we deliver only faultless range of products.

Details : The machine is equipped with advanced mechanisms, such as high precision index, Italian air clutch, patent quick die-lock, featuring manual feeding, platen die cutting, and automatic increase and decrease of delivery platform, which ensure stable running, precise positioning, steady pressure and tidy delivery. All covers on driving side adopt pad locks, ensuring quick and convenient maintenance. Whole machine is PLC-controlled, with complete security devices ensures automatic running and security operation. Man-machine interface shows real-time working conditions, malfunctions and shooting ways.

• Safe and reliable preloading mechanism, ensure paper stack more tidy
• Economic and pragmatic manual feeding method effectively resolve the problem of feeding and positioning of curve paper
• Paper feeding platform increase automatically, facilitating operation
• Front lays can be adjusted by hand wheel, conveniently, and work stably
• Side lays are equipped on both operation side and driving side
• LCD shows real-time working conditions, malfunctions and shooting ways, ensuring more convenient operation
• Blow gun clear paper dust effectively and conveniently
• Die Cutting Unit

  • Manual adjustment of die cutting pressure, simple and stable.
  • 40Cr crankshaft
  • Worm process with hardened 40Cr
  • Top and bottom platforms and wall plates made of nodular graphite casting iron
  • Adopt high precision index(Taiwan Teshi), graduate accurately, running smoothly
  • Adopt Italian air clutch, mesh and separation quick, stable and reliable, big torque transmission
• Pneumatic chase lock

  • Adopt patent die-frame, ensuring quick and convenient changeover, reducing make ready time and resolve die sagging problem essentially (Patent No. ZL201120553563.X)
  • Equipped with manual barring mechanism, facilitating maintenance;Gripper bar positioning fine adjustment mechanism
• Stripping Unit

  • Removable stripping frames which allows easy and quick installation of tooling.
  • Frames can be manufactured to accept Centerline stripping tooling.
  • Three movement stripping frames system that allows the most intricate of products to be stripped effectively at high speed.
  • Lower pin frame and stripping pins are supplied as standard.
• Paper Delivery Unit

  • Automatic side trimmers and back trimmer make delivery pile tidy and adjustment conveniently
  • Automatic delivery platform ensures receiving paper smoothly and effectively
  • Non-stop sampling mechanism realizes real time checking of die cut paper
  • Roll-up sensor prevent paper pile from going ultrahigh and paper incidental roll-up
• Electric control case

  • PLC real-time control and inspect the whole working procedure from feeding, die cutting to delivery
  • Equipped with complete security devices, realizing stable running and security operation.
