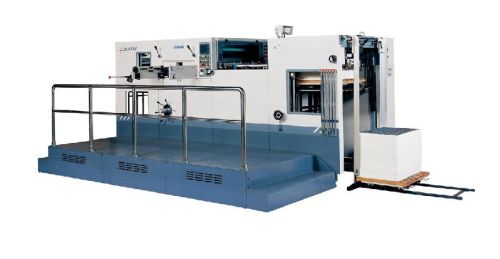

SL-800H Automatic Die Cutting and Creasing Machine

SL-800H automatic die cutting and creasing machine is key equipment for die cutting, creasing and embossing of paper packaging products. such as paper cassettes box board containers and labels etc. Unique drive gears are adopted, such as high-precision indexing mechanism pneumatic clutch German IWIS gripper bar chain etc., ensures stable and high speed running of the machine. Frequency conversion main motor is stable and reliable. This machine is equipped with practical and reliable mechanisms such as secondary feeding device thin paper reducing mechanism secondary delivery mechanism pneumatic sampling device etc. which ensure the excellent performance of the machine. All electrical components and driving parts used on the machine are purchased from world famous manufacturers, ensuring the die cutting precision and reliability of running. Meanwhile man-machine interface were adopted to show the running state, malfunction point and trouble-shooting ways in real time, fully actualizing man-machine communication. Accurately processed nodular graphite iron casting wall plates, base table, top table as well as movable table ensures long-term service life and consistent working precision. Advanced design conception high-standard parts process standardized setup plus high quality import pivotal components such as electrical control system bearings fasten parts etc. provided important guarantee for easy operation and high stability of the whole machine. For this model, we have CE version (SL-800M) for option.
Specification

• Max. sheet size 800 620mm
• Min. sheet size 360 290mm
• Max. die cutting size 790 610mm
• Min. gripper margin 5mm
• Die cutting Precision ±0.1mm
• Max. die cutting pressure 150T
• Paper specification 100-2000 g/m2
• Corrugated board  2mm
• Max. speed 8500S/H
• Max. height of feeding pile 1400mm
• Total power 13KW
• Max. height of delivery pile 1030mm
• Total weight 11.3T
• Overall size(L W H) 5620 3160 1980mm
