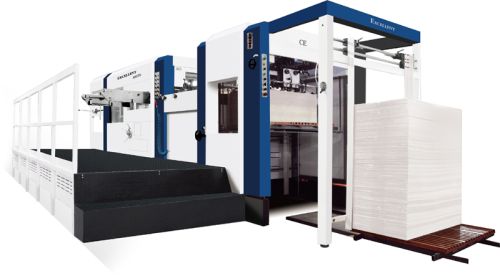

SL-800TS Die Cutting & Stripping Machine

With the aid of modern storage facility and diligent professionals, we are capable to fulfill quick and voluminous requirements of the clients. Also, we ensure complete safety of the stored products. In order to ensure zero damage during transit, we have adopted modern facility for meticulously packaging our offerings. And, we also ensure that the used material is of high quality.

Product Detail :

• When you are looking for the best cutting and creasing platen within a limited budget, Higher have an Automatic Platen that can match your needs. Manufactured from quality components and supported by dedicated technicians, the Higher SL-800TS Automatic Platen can give you good, consistent die cutting productivity.

• This machine is designed for converting small format material quickly and is ideal for both long and short production runs. It has been manufactured with the replacement of traditional hand fed and cylinder style platens in mind.

• It is easily operated and will, with its impressive production speed, could produce a similar output to quite a few of the older style machines. Tooling can be converted from platen forms to fit on the 800TS and the machine is ideal for cold embossing.

• Fast change overs aid high speed production. The Higher range of Automatic Platens brings together tooling, materials and data to deliver fast, accurate and consistent production.

The standard features of each section of the machine are :

Feeder

• Stream fed top feed suction unit with a Max speed of 7200 Sheets per hour;

• Angle and height of suckers can be adjusted according paper conditions, ensuring high speed and smooth feeding of papers, no matter cardboard paper or corrugated paper.

• Pre-loading and secondary hoist system to allow continual running during pile changes.

• Feeding table can be adjusted at transverse directions, accept standard pallet direct from printers.

• Both pull and push side lays on both the near and off side of the machine, push and pull function can be changed quickly, reducing make-ready time.

• 2 sets of anti-crash inspection sensor, effectively avoid the cash of protect feeder and feeding table.

• Adjustable air blow enabling efficient sheet separation on the full range of raw materials.

• Side lays fitted with electronic detection to prevent registration errors of badly position sheets.

• Double-sheet detection device fitted on the lay board.

• High specification German SAMPLA feeder belts for maximum stability during sheet transfer.

• Speed reduction device to slow the speed of the paper arriving at front lays, thus reducing rebound when paper reaches the lays. This allows thin material to be die cut efficiently and precisely with minimal stoppages.

• High efficiency/ low maintenance Becker vacuum pump (optional)

Press section

• Fully adjustable multiple front lay with electronic detection device to prevent registration errors.

• Standard height cutting rule. (23.80mm)

• 5mm thick hardened steel plate combined with a 2mm hard or soft plate facility to allow matrix or embossing forces to be saved on regularly run products.

• High specification, heat treated steel drive worm and bronze wheel main drive. Toggle action die cutting movement.

• Pressure components adopt high-strength nodular graphite casting iron QT500-7, durable and not to deform.

• Cam shaft is made of high grade alloy steel and specially processed.

• 4-side register system, ensuring high precision die cutting

• Germany imported torque limiter, avoid serious losses when accidental crash take place.

• Photoelectric sheet detection at each stage of sheet transfer through the machine.

• Standard 2x cutting chases complete with hardened steel chase backing plates. Universal forme locking system for cutting tools.. (Centreline designs can be included if required). (Optional extra)

• 5 x Lightweight aluminum alloy gripper bars complete with pinch grippers.

• German IWIS high strength extended pitch gripper bar chain.

• High precision indexing cambox drive for high precise, high speed gripper movement.

• Imported high precision synchro drive belts and pulleys.

• Automatic central lubrication system for all chains, cams and gears that is primed periodically as the machine is in production. Drip trays fitted under all lubricated parts to ensure minimal contamination of the factory.

• Italy OMPI pneumatic clutch and brake unit.

Stripping Unit

• Removable stripping frames which allows easy and quick installation of tooling.

• Frames can be manufactured to accept Centreline stripping tooling.

• Three movement stripping frames system that allows the most intricate of products to be stripped effectively at high speed.

• Lower pin frame and stripping pins are supplied as standard.

• When stop using stripping function, just need to increase top frame, which is driven pneumatically.

• Stripping frames are made of aeronautical aluminum alloy, high-strength and light-weight.

• Top and bottom stripping frame can be adjusted transversely, facilitating load forme.

Delivery Section

• Delivery front and side jogging, that will ensure a neat stack on the delivery table / pallet.

• A sheet sampling system that allows a sheet to be easily removed from the pile during production to check cutting/creasing and registration to print.

• Tab inserting unit to enable the products to be split into accurate batches. (Optional extra)

• Quick pile change / non-stop running delivery facility.

• Photo electric sensors that protect personnel near the foot trap point at delivery table’s lower position. (optional extra)

• Paper drop photoelectric sensor to prevent delivery pallet from going too high and paper rolling up

• Delivery hair brush can be adjusted conveniently.

Electrical Control

• Main machine is controlled by OMRON PLC controller easily accessed and repaired all over the world.

• Main motor speed control inverter manufactured by TOSHIBA Japan.

• Machine control encoders and electronic cam are Manufactured by OMRON Japan.

• Interlocking type guard switches used on all machine guards in conjunction with safety relay.

• All electrical parts are from well known manufacturers.
