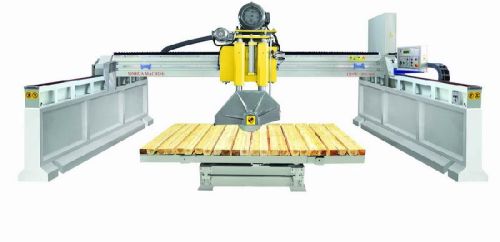

Slab Cutting Machine

QHW-4006001200 Automatic Bridge Saw, this machine is provided with fully automatic girder displacement positioning and microcomputer control, and is very high in automation level. The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine. It is particularly applicable for cutting valuable and large stone plates.
Technical Data QHW-400 QHW-600A QHW-1200
Worktable dimensions 3200×2000 mm 3200×2000mm 3200×2000mm
Worktable rotation angle 90° (360°make to your order)
Worktable upturning angle 0°～ 85° 0°～ 85°
Diamond saw blade diameter 350-400mm 400-600mm 600～1200
blade left-and-right motion stroke 3200 mm 3200 mm 3200 mm
blade forward-backward motion stroke 2000 mm 2000 mm 2000 mm
Saw blade up-and-down motion stroke 200 mm 380mm 450mm
Main motor 15kw 18.5kw 18.5kw
Feeding motor 1.1 kw 1.1kw 1.1kw
Slicing motor 3 kw 3 kw 3 kw
Rotating motor 0.55 kw 0.55 kw 0.55 kw
Dimension (L×W×H) mm 5870×4700×2520 5870×4700×2720 5870×4700×2720
Weight (T) 6 6 6
