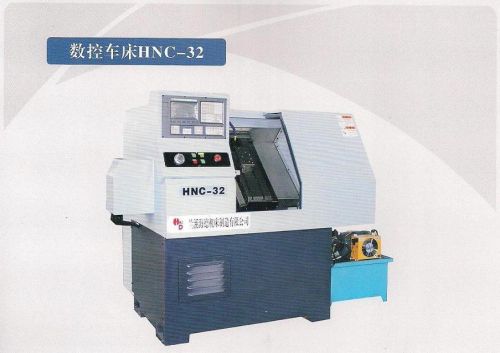

Slant CNC Lathe Machine

We are offering slant cnc lathe machine.
machine characteristic
using 45o slant guide
suitable for processing the workpiece of disc,sleeve and short axis
long x-axis travel,suitable for gang tool processing
using high precision ,high rotation spindle
using linear guideway,fast movement
screw adopts pretensioning structure, high positioning accuracy
selection configuration
control system:siemens,fanuc,mitsubishi,knd,gsk
clamping way:elastic clamp head,manual chuck,hydraulic chuck
tool-post:gang tool,vertical electric tool-post
chip cleaner:automatic chip cleaner, chip plate
main technical parameters
specification unit parameters
max.swing over bed mm 320
max.processing workpiece diameter mm 320
max.processing workpiece length mm 245
spindle speed r.p.m 300-3500
spindle nose type a2-5
spindle throughbore diameter mm 52
z-axis travel mm 245
x-axis travel mm 300
max.fast movement speed of z direct m/min 12
max.fast movement speed of x direct m/min 10
main motor power kw 4
z direct servo motor power kw 1.2
x direct servo motor power kw 1.2
tool hand size mm 16x16
round tool hand size mm �16
range of chuck clamping mm �12-�140
main precision index
spindle circle beatã¢ï¿½â¤0.005 position precisionã�â±0.01 repeat position
precison 0.005
hydraulic motor power kw 1.5
cooling pump power kw 0.125
overall dimensions(lxwxh) mm 1770x1545x1060
machine weight kg 1900.
