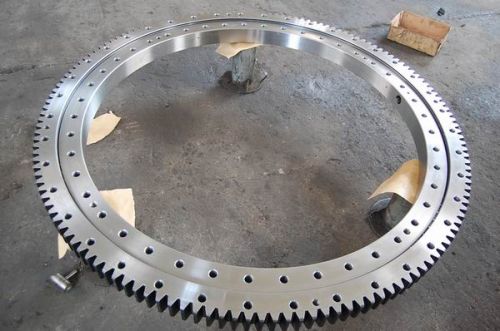

Slewing Bearing

We are offering slewing bearing-vsu200744n, name slewing bearing
gear non-gear, external gear, internal gear
rolling ball, cylindrical roller
certificate iso9001:2001
hardness tempering and quenching the forgings to 229-269hb, case harden raceway to 55-60hrc, case depth more than 3.
Bore size: 100mm-4000mm outside diameter 200mm-5000mm
features slewing bearings are ball or cylindrical roller bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction.
They are not mounted on a shaft or in housing; the rings are simply bolted on the seating surface. The four point contact ball bearings are available in one of three executions:
-without gear
-with internal gear
-with external gear
slewing bearings can perform both oscillating (slewing) movements as well as rotating movements.
Application tunneling equipment, harbor and shipyard cranes, construction equipment, mobile cranes, offshore technology, tower cranes, turning machines, solar energy plants, ship deck cranes, railway cranes, man lifts, wind turbines, and so on.
Package first lubricated, second circled with plastic film/kraft paper/blue belt,then pakaged in plywood case,last gethered in wooden pallet.
Price fob,cfr, cif delivery time 15-30days
materials:
name of part material
rings bearing steel zgcr15/gcr15
cage brass
roller carbon chromium steel
services:
1 oem service provided
2 processing with supplied drawings
3 providing replacement ntn, fag, skf, ina, nsk,timken,koyo, nachi precision bearings etc.
4 providing all the china replacement precision bearings.
application area:
1 costruction equipment ,tunnel boring machines
2 engineering machine & vehicles,drilling machine sets
3 excavators,crane,tower crane
4 ct medical machine
5 wind power generation system
6 mining/shipping port/light industry/petrochemical/entertainment machiney
7 millitary equipment
slewing ring bearing type:
1 single row four point contact ball series
2 double row ball series
3 crossed roller series
4 three row roller series
materials:
name of part material features
rings 50mn,42crmo surface quench hardening
rolling element gcr15,gcr15simn whole quench hardening
retainer zl102 cast aluminum alloy/polyamide110 resin/nylon grpa66.25/stainless steel no20 abrasion resistance
sealing ring nbr rubber oil resistance
all above could produce according to customer’s requirement.
Services:
1 oem service provided
2 processing with supplied drawings
3 providing replacement kaydon/komatsu/hitachi/volvo/caterpillar/kato/sumitomo/kobelco/daewoo/doosan/hyundai/case
/jcb/liebherr/kubota/takeuchi/hisce/terex/lovol slewing ring bearing etc.
4 providing all the china replacement slewing bearing ring. Zoomliom,sunward,sany.....etc.
