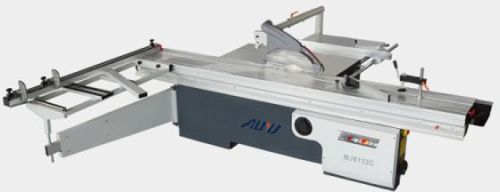

Sliding Panel Saw Mj6132c

We are offering high round stick rail 375mm, with comb lock
digital readout for saw tilting 45°
main motor 5.5kw, 3238
type-a dust hood
full size extension tables
heavy duty carriage
powder painting, anti-rust
model mj6128c mj6132c mj6138c
max. Cutting length 2800mm 3200mm 3800mm
main saw blade diameter φ300mm φ300mm φ300mm
cutting thickness φ300mm 90mm 90mm 90mm
main spindle diameter φ30mm φ30mm φ30mm
speed of main saw blade 40006000rpm 40006000rpm 40006000rpm
tilting saw blade 0-45° 0-45° 0-45°
main motor 4.0kw 5.5kw 5.5kw
scoring saw blade diameter φ120mm φ120mm φ120mm
scoring spindle diameter φ20mm φ20mm φ20mm
speed of scoring saw blade 8000rpm 8000rpm 8000rpm
scoring motor 0.75kw 0.75kw 0.75kw
net weight 700kg 760kg 860kg
overall dimensions 2850x3150x900mm 3250x3150x900mm 3850x3150x900mm
