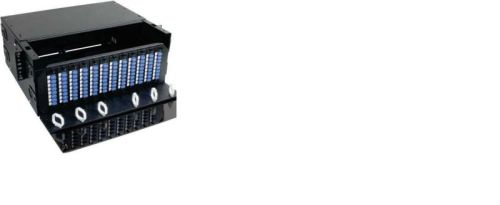

Sliding Patch Panel

Superiortec offers an innovative, robust, 4U sliding panel with a smoked plexi glass hinged front door. This panel has been
designed to accept up to 12 LGX style assemblies.
With the ability to use a full array of adapter types, this panel offers a solution to the end user, enabling them to incorporate
a multi functional chassis that allows easy access during installation.

FEATURES AND BENEFITS

• Upto 12 LGX componets in 1U
• 19" and 23" Rack mountable
• Sliding tray for ease of installation
• Integrated Sprung loaded tray shop
• Up to 12 X 24 fiber MTP cassettes
• Multiple adapter options available
• Splicing option available
• Side Patch cord exit
• Hinged Front Plexi Glass door
• Removable top cover
• Accepts loose tube, distribution cable and MTP trunk cable ROHS, REACH SvHC

4U Modular Patch Panel Chassis
U Size 4U (17.78cm)

Width 43.18cm
Net weight 24 kgs
Packaged weight 24.9 kgs
Packaged dimensions 52cm W x 45cmm H X 55cm D
Suitable for Adaptor type LGX / MTP Cassettes
Number of module positions 12
Material Cold- rolled steel
Material thickness 16 Gauge
Powder coating
Colour RAL 9004
Operating temperature -40°c to +50°c
Designed in accordance with TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304,IEC61754,EN297-1

Compliant to RoHS, Reach/SVHC

APPLICATION

Data centres, premise installations, telecommunication networks
Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
Data communication and telecommunication networks
Indoor applications

ORDERING INFORMATION

AP4U     Sliding Patch Panel  with 12LGX slots

L01SCS08/CAS    :- 8Port Adapter Plate (UnloadedZ) SC SINGLEMODE SIMPLEX

L01SCM08/CAS   :- 8Port Adapter Plate (UnloadedZ) SC MULTIMODE SIMPLEX

L01LCS08/CAS    :- 8Port Adapter Plate (UnloadedZ) LC SINGLEMODE DUPLEX

L01LCM08/CAS    :- 8Port Adapter Plate (UnloadedZ) LC MULTIMODE  DUPLEX

L04:-     BLANK PLATE
