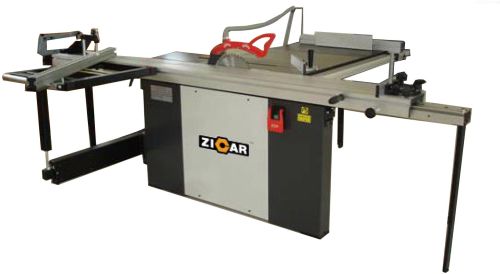

Sliding Table Saw Woodworking Machine

₹ 1.34 Lakh / 2000 2000 Set

MOQ3 Set(s)
Extension table(steel plate)440×800mm
Motor power3kw(3 PH ),2.2kw(1PH)
Major table size385×800mm
Extension table(cast iron)440×800mm
Supply TypeExporter
Preferred Buyer Location All over the world

We offer Sliding Table Saw Woodworking Machine. 1. V type straight rail with steel ball and sliding table length depends on the customer requirements from 1.5m to 3.2m 2. The unit can be....

Product Details

We offer Sliding Table Saw Woodworking Machine.
1. V type straight rail with steel ball and sliding table length depends on the customer requirements from 1.5m to 3.2m
2. The unit can be equipped with scoring unit for an optimal cutting even on upgraded panels. Tilt of scoring blade 45°
3 With Handles for adjusting height and angles
4. Cost effective
Model:MJ5132
Motor power:3kw(3 PH ),2.2kw(1PH)
Major table size:385×800mm
Extension table(cast iron) :440×800mm
Extension table(steel plate):440×800mm
Rear extension table：310×500mm
Sliding panel size：3200×270mm
Cross cut table size：680×580mm
Cross cut fence：1200-2200mm
Main blade size：315×30×3mm
Main blade speed：4000rpm
Scoring blade size：90×20×3mm
Scoring blade speed：5800rpm
Max cut depth:100mm at 90°(315),80mm at 45°(315)
Max distance-blade to rip fence:1220mm
Max cross cut length:3200mm
Max. Cross cut width:1350mm
Packing size：1560×756×1009mm 3250×246×325mm
N.WG.W:310350kg.
