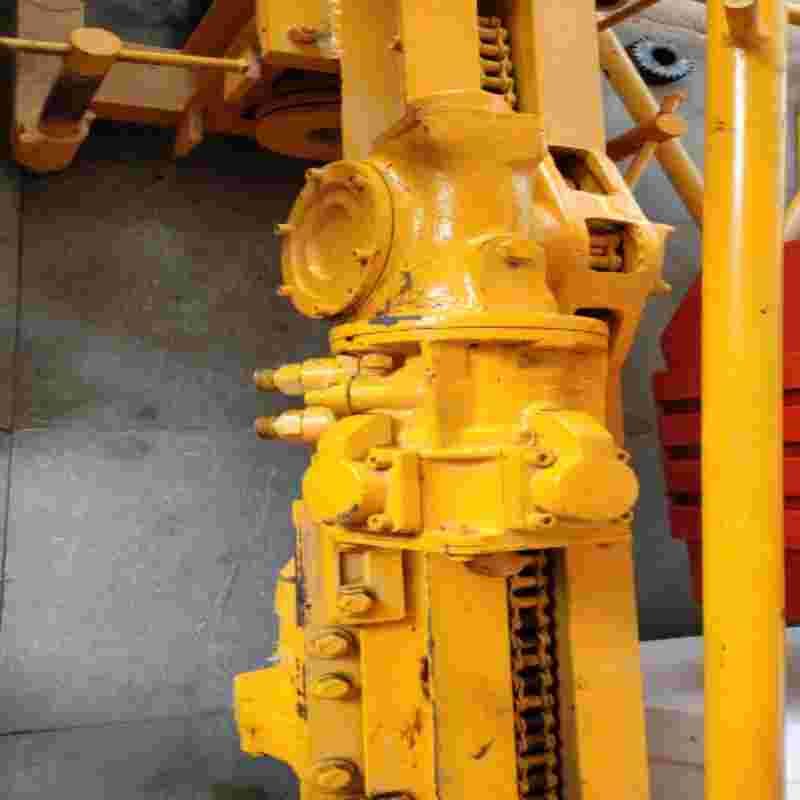

Knmbm International Hard Fabriction Slim Drill, Phase : Pneumatic

₹ 1.80 Lakh - ₹ 3.40 Lakh / pcs

Country of OriginMade In India
Brand NameKnmbm International
Phasepneumatic
Power SourcePneumatic Drilling Machine For Quarry
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Manufacturer
GST No. 08AIYPR9141H1ZF

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginMade In India
Power SourcePneumatic Drilling Machine For Quarry
Net Weight350 Kg
Brand NameKnmbm International
Surface Treatmentyes
Warrantycompany product
Phasepneumatic
MaterialHard Fabriction

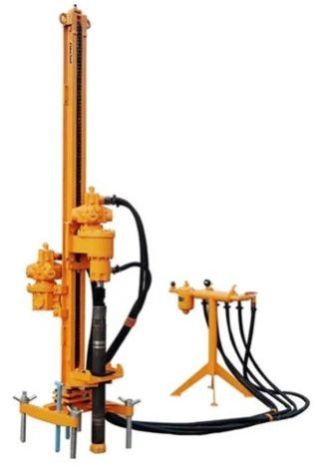

An LD4 machine, also referred to as an LD4 drilling machine, is a type of industrial drilling machine primarily used in quarrying and mining operations. Its versatility makes it suitable for drilling in a variety of materials, including stone Mrble and Granite hole

LD4 machines are known for their versatility, able to drill vertically and horizontally in various industries. They are designed for precision, have a compact design, and are often user-friendly for single-person operation. Their rugged construction contributes to durability in industrial settings. Applications include line drilling, blast hole drilling, and rock excavation in quarries and mines.

Technical specifications

Technical specifications vary by model. General specifications can include a hole diameter range of 75mm to 177mm, vertical drilling depths up to 30 meters, and horizontal depths up to 20 meters. Drill pipe diameter is typically 76mm or 62mm with a length of 1.5 meters. They usually have a pneumatic motor power between 4.5 and 6 horsepower and require a minimum pressure of 7 to 10 bar. The approximate weight is 600 kg to 700 kg, and chassis sizes are commonly 4-inch or 5-inch.
