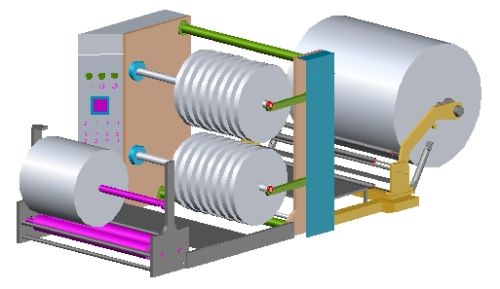

Slitter Rewinder Machine

Prominent amidst the leading Supplier; count on us to avail the finest Slitter Rewinder Machine. Our team makes it possible to carry out online transactions, keeping the details confidential. Our payment procedures and the transactions we make are completely transparent and thus, clients can trust on us. Paper Slitter Rewinder 3 in 1 Machine SMT1400 Slitter Machine
Specification :

• Application Material Label, Regular Paper, Kraft Paper, Non-woven Cloth, Film(PP,PVC,OPP.PE, PET, BOPP), Bond Paper, etc. Main Equipped with programmed control system and meter counter.
• Equipped with frequency inverter(5.5kw) for motor control and frequency inverter motor(5.5kw), working more stable.
• All transmission rollers have been dynamic/static balance treated.
• Slitting with razor blades & circular blades
• Equipped with guide roller, size(dia.width) 70mm 1330mm Unwinding Section 3 pneumatic air expanding shaft.
• Equipped with edge position control(EPC) to provide accurate slitting position
• Equipped with automatic loading system for jumbo roll loading, labor saving and easy operation.
• Equipped with 20Kg automatic braking device x 1. Equipped with 1 set tension controller for unwinding tension control. Slitting Section
• Equipped with disc type blade for paper slitting.
• Equipped with automatic meter counter which will stop the machine when reach the pre-set length. Rewinding Section 3 air expanding rewinding shafts is available in this machine.
• Equipped with 2 sets 10Kg/ m electromagnetic clutch for rewinding tension control Equipped with 2 sets tension controller for rewinding tension control. Trimmed Waste Equipped with air blower and expulsion tube.

Main Technical Parameter :

• Model Type - S1400
• Max. Parent Web Width - 1400mm
• Max. Parent Web Diameter - 1400mm
• Max. Rewinding Diameter - 750mm
• Min. Slitting Width - 30mm
• Thickness Range -:
• Paper - 30gsm-600gsm
• Film - 0.012-1mm
• Max. Machine Speed - 180m/min
• Unwinding/Rewinding Shaft - 3’’ Pneumatic Air Expanding Shaft
• Slitting Precision - ±0.15mm
