We are offering
Descriptions:

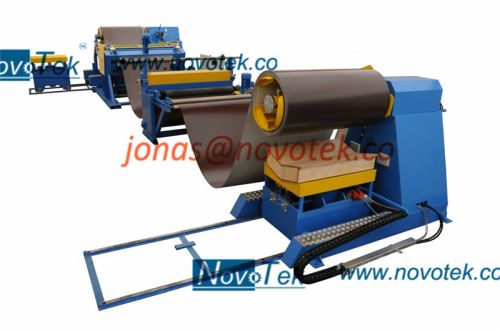

This line mainly includes: hydraulic uncoiler, slitter and cutter, conveyor, recoiler and roll forming machine, etc.
It is used to slit and cut the coil into required size and then roll form it to specify profile, and the recoiler winds the scrap at the same time.
By using this specially designed line, we can save a lot of cost for coil processing, also it has a high efficiency and low energy consumption.
Technical Parameters:
Item Parameters
Coil thickness (mm) 0.4-0.6
Max speed (mmin) 20
No. of slitters Tailor-made
Roll stand 18
Main power (Kw) 7.5
Main shaft (mm) Ø70
Cutter material Cr12
Cutting accuracy 10±2mm
Hydraulic station power (Kw) 5.5
Control system PLC
Typical layout:
