Slitting machine, Automatic Grade : Automatic

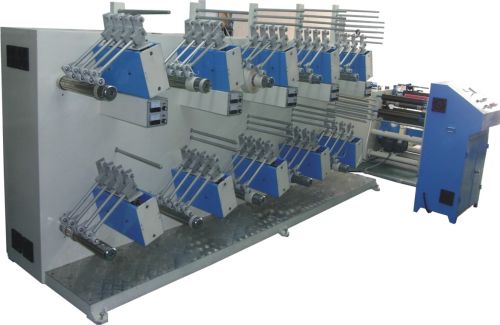

We are offering BYJX-FT360 Twining Slitting Machine
Application fileds:

Applicable to all kinds of adhesive tape, paper tape with or without glue. Such as masking tape ,kraft paper, CPP, OPP etc..
Characteristic:
This machine adopts imported control systems,can simultaneously complete 40 volumes rewinding material equipped with paper receiving platform, blowing edge feeding system and independent electrical control box.Humanized operation and any part of the machine can be controlled freely.
The main components:
1.The main discharge frame 1 set 2.The slitting unit: 1 set
3.The rewinding unit 1 pcs 4.The control system: 1 set
5.Cutting knife: 1set 6.The rewinding axis system: 1set
Technical Parameters:
1.Material type:adhesive tape,paper tape 2.Mechanical speed: 60M min
3.Cutting speed: 5-40M min 4.Maximum width: 300MM
5.The maximum unwinding diameter: ɸ1000MM 6.The maximum rewinding diameter: ɸ350MM
7.Cutting accuracy: ± 0.05MM 8.The total power: 16KW
