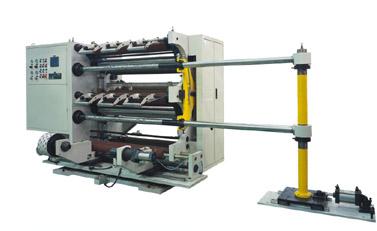

Slitting machine, Automatic Grade : Semi Automatic

Main features
Offering Slitting Machine.
1. Vertical structure, unwinding and rewinding can be done at the same side.
2. Unwinding reel is clamped pneumatically with shaftless cones; reel width is electrically controlled and also with line position control LPC system.。
3. Ultrasonic reel diameter detector is used with residual reel alarming system
4. Pneumatic slip- rewinding shaft; automatic setting-length alarm system.
5. Backpressure reel-pressed cylinder makes rewinding reel tidy and good tightness.
6. Man-machine-interface, CPU centralized control system
7. Small area occupancy and one person can operate it freely.
Technical Parameters
Main technical data
Max unwind dia Φ800mm
Max rewind dia Φ500mm
Reel width range 600－1300mm
Slitting width 50－1300mm
Slitting accuracy ±0.3mm
Max slitting speed 300mmin（PE、PVC≤200mmin）
Rewind accuracy ±0.3mm
