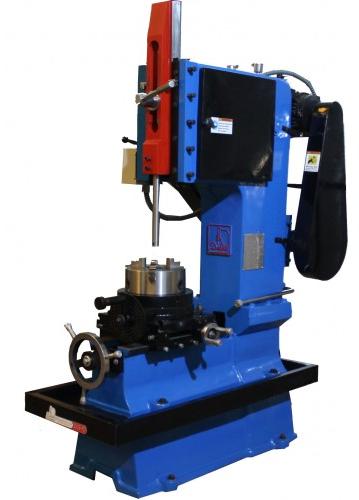

Slotting Machin

Get Latest Price

H.P Required1.5 HP
Cross Movement9"/230mm
Throat Depth16"/410mm
Ram Adjustment10"/250 mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Throat Depth16"/410mm
Ram Adjustment10"/250 mm
Rottary Table10"/ 250 mm
Stroke10"/250 mm
Cross Movement9"/230mm
Video Linkhttps://www.youtube.com/embed/VlMm7JkG02Y
Longitudinal Movement9"/230mm
Cutting Speed of Ram Per Miniute3 speed
H.P Required1.5 HP
Distance from the Tool to Main Column13"/330 mm

Features

DLS- 10 model, which has 10 to 250 mm capacity of slotting strokes. The longitudinal and cross movement remains 230mm on both directions therefore this instrument remains a suitable option for inserting requirement which should be equal on both directions. It is equipped with 3 speed adjustment. The Ram adjustment is 250mm .Rigid Construction hence smooth and Vibration free operation. Fine gained castings and dully Seasoned. All gears are instruments cut and Properly fitted.

Option Accessories

Rotary Table with 36 :1 Ration ( 250mm):-

8"/200 mm True Chuck :-

Wooden Box Packing :-

Specifications
