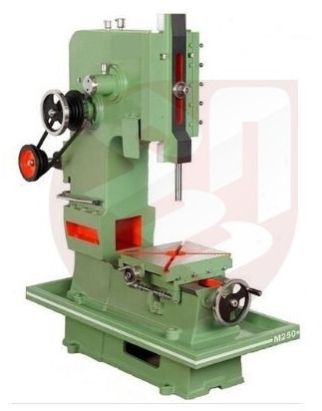

| “SHREE” Brand Slotting Machine | ||||||
| Specification | SM6 | SM10 | SM12 | |||
| Capacity | ||||||
| Stroke Capacity – INCH / MM | 6” / 150 mm | 10” / 250 mm | 12” / 300 mm | |||
| Longitudinal Travel | 200 mm | 230 mm | 330 mm | |||
| Cross Travel | 110 mm | 130 mm | 150 mm | |||
| Cross Slide Size | 280 × 335 mm | 280 × 335 mm | 340 × 340 mm | |||
| Ram | ||||||
| Ram Adjustment | 150 mm | 250 mm | 300 mm | |||
| Boring Size in Ram | 25.4 mm | 25.4 mm | 25.4 mm | |||
| Distance from Tool to Column | 210 mm | 330 mm | 450 mm | |||
| Distance from Cross Slide Surface to Head | 310 mm | 410 mm | 530 mm | |||
| Speed | ||||||
| Number of Speed | 3 | 3 | 3 | |||
| Counter Belt(V – Belt Nos. 1) | B – 41 | B – 45 | C – 49 | |||
| Electricals | ||||||
| Electric Motor (HP / RPM) | 1 / 1440 | 1.5 / 1440 | 2 / 1440 | |||
| Motor Belt(V – Belt Nos. 1) | B – 52 | B – 54 | B – 58 | |||
| Machine Dimension & Weight (Approx.) | ||||||
| Length x Width | 500 × 950 mm | 550 × 1150 mm | 600 × 1350 mm | |||
| Height | 1150 mm | 1350 mm | 1450 mm | |||
| Weight | 300 kg. | 400 kg. | 500 kg | |||
