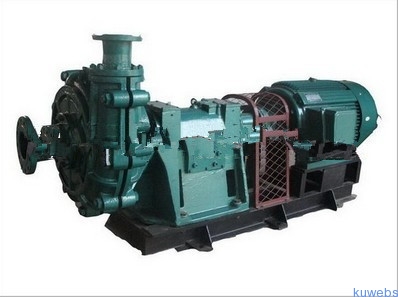

Slurry Pump

We offer Zgb series pump
scope of application:
apply to the electricity, metallurgy, mining, coal, building materials, chemical industry etc, transport of high lift abrasive or corrosive slurry.
this series of pump is a horizontal, single stage, single suction, cantilever, double pump casing of centrifugal slurry pump. In order to meet the needs of the rapid development of mine, electric power, metallurgy, coal industry, improve the slurry pump high-lift conditions model, then summarized using comprehensive information of domestic and international experience and user feedback, we use modern advanced technology and scientific research, the development of a new generation of high efficiency, high flow, high lift and multi-stage series zgb series slurry pump.
the following main characteristics of the series of products:
1 cam modern design, hydraulic performance, high efficiency and lower abrasion rate.
2 expeller seal combined with packing seal and mechanical seal have be adopted to guarantee the slurry from leakage
3.wide passage, non-clogging and good performance of npsh
4 reliability design ensures long mtbf (mean time between events)
5 using the thin oil lubrication, metric bearings, reasonable lubrication and cooling system, ensure the bearing operating at low temperature.
6the flow components with high chromium alloy material, corrosion resistant performance is good.
7 the pump can be operated in series with multi-stage within permissible pressure. The permissible maximum working pressure is 3.6 mpa
8.zgb series slurry pump drive mode to direct, through cutting impeller outer diameter to adjust the flow rate of the pump head.
