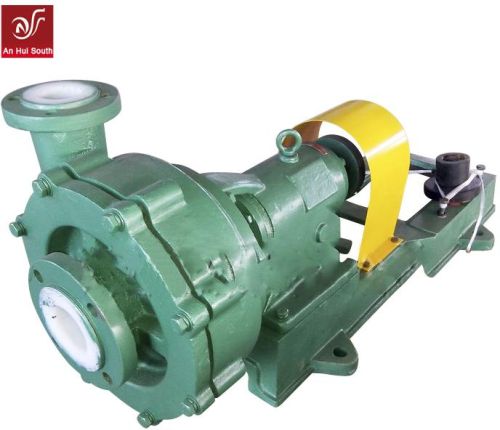

Slurry Pump, Brand Name : Anhui South, Classification : Centrifugal

Uhb-zk series slurry pump is single stage single-suction centrifugal pump, this pump is designed to transmit the corrisive medium which contain particle or crystallization.
This pump use steel-lining ultra-high molecular polyethylene molding process to manufacture the pump. So it has superior performance in corrosion prevention and wear resistance.
cantilever structure is designed to open in front semi-open impeller (without front and back panels ).
This design increases the trafficability ot the line. And it can make the medium particles and impurities quickly through the pump without block. The seal is k-tppe fluorine rubber seal ring outer zone cooling water device. And it meets the requirements of corrosion prevention and wear resistance.
1, feature: the overflow components adopt the steel liner ultra-high molecular polyethylene manufacturing, this pump wear resistance is 4 times of ptfe and 6-7 times of carbon steel, stainless steel. Corrosion resistant, acid or alkali liquor slurry are applicable. No adhesion, anti adhesion ability and samilar with ptfe material. Low friction coefficient, having self lubricity. Safe and reliable, toxin free, suitable for use in the food industry.
Working temperature: -20 - 80 degree
flow: 3 m3h - 1000m3h
head: 15-50m
the min model no: uhb-zk4010-20
( motor horse power: 3 kw ) inlet diameter and outlet diameter: 40 * 32mm ( flow for choose 5, 10, 12 ) m3h. Pump head (18, 20, 22 ) m
the max model no: uhb-zk3501600-50
(motor horsepower: 40kw ) inlet diameter and outlet diameter: 350 *350 mm (flow for choose 110016001920 )m3h, pump head ( 45 50 53 ) m
2, applicable medium: concentration of sulfuric acid and nitric acid are below 80% and below 50% respectively. Hydrochloric acid, th concentriation of each liquid alkali, and mine with corrosive slurries and pulp, namely applicable clear liquid also applicable slurry.
