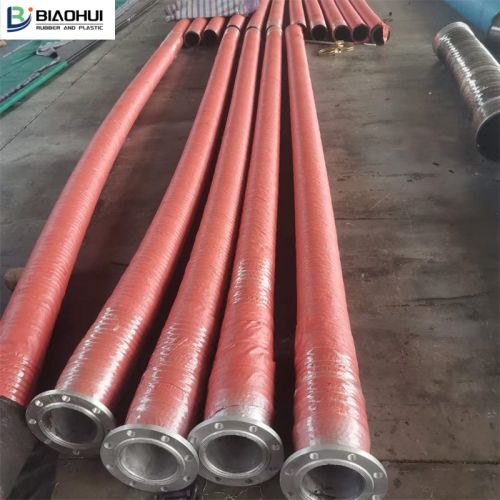

Nitrile Rubber Slurry Suction and Discharge Hose

 Slurry Suction and Discharge Hose can be used for slurry dredging in many places, such as river, lake and sea, and this is the slurry suction & discharge hose. It is mainly used for slurry suction, delivery and discharge. Slurry is abrasive, so slurry suction & discharge hose is highly resistant to abrasion. It is composed of three parts: tube, reinforcement and cover. Tube is made from high quality synthetic rubber, such as NB, SBR and BR, making hose resistant to abrasion and corrosion. Reinforcement is made from multiple layers of high tensile spiral steel wires, making hose resistant to kink and fatigue. And the high tensile reinforcement makes hose suitable for high working pressure environment. Cover is made from synthetic rubber (NR, SBR and BR), making hose resistant to abrasion, corrosion, weather, ozone, aging and cut. The hose has excellent flexibility and it can be connected to pipeline tightly by flange.

The details of slurry suction & discharge hose:

• Structure: composed of three parts: tube, reinforcement and cover.
  • Tube: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion and seawater.
  • Reinforcement: multiple layers of high tensile spiral steel wires, making hose have solid structure and resistant to kink and high pressure.
  • Cover: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion, seawater, heat, weather, ozone and aging.
• Working temperature: 20 °C to 80 °C.

The specification of slurry suction & discharge hose Hose codeIDODWorking pressureBurst pressureVacuum pressureLengthinchmminchmmbarMPabarMPabarMPamSSDH-01 SSDH-02 SSDH-03 SSDH-04 SSDH-05 SSDH-06 SSDH-07 SSDH-08 SSDH-09 SSDH-10 SSDH-11 SSDH-12 SSDH-13

6	152	7-1/4	184	12	1.2	24	2.4	0.8	80	20
8	203	9-1/5	233	24	2.4	24	2.4	0.8	80	20
10	254	11-1/5	284	10	1	20	2	0.8	80	10
12	304	13-2/5	340	10	1	20	2	0.8	80	6 - 10
14	355	15-2/5	390	10	1	20	2	0.8	80	6 - 10
18	457	19-1/5	487	7	0.7	15	1.5	0.8	80	6 - 10
22	560	23-3/5	600	7	0.7	15	1.5	0.8	80	6 - 10
24	635	25-3/5	650	7	0.7	15	1.5	0.8	80	6 - 10
28	711	29-3/5	752	7	0.7	15	1.5	0.8	80	6 - 10
32	813	33-1/2	850	5	0.5	10	1	0.8	80	6 - 10
40	1016	41-1/2	1054	5	0.5	10	1	0.8	80	6
48	1219	49-1/5	1250	5	0.5	10	1	0.8	80	6
52	1320	53-1/5	1350	5	0.5	10	1	0.8	80	6
We can manufacture slurry suction & discharge hose according to customers' requirements, such as material, length, inner diameter, outside diameter.
