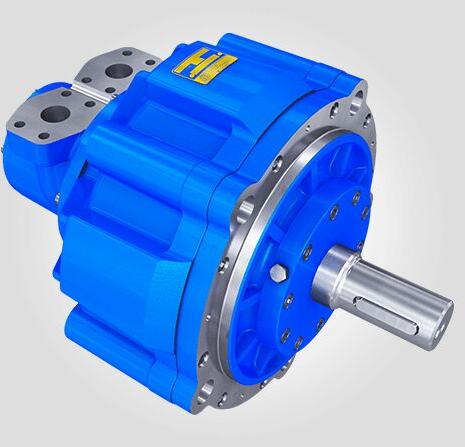

SMA MOTOR

SMA motors are of heavy duty, radial piston, eccentric configuration. The efficient design includes a hardened high tensile steel crankshaft supported on hydro-static and taper roller bearings. The SMA can withstand both high mechanical and high hydraulic shock loads offering excellent life and continuous high power use. Speed and power ratings are significantly higher than standard high torque low speed (HTLS) motors; our SMA standard models range up to 150:1. Most SMA motors are designed for continuous 350 bar and intermittent 490 bar duty.

PRODUCT FEATURES

• Displacements available from 200 – 16,400 cc/rev
• Continuous pressure of 350bar
• Suitable for use with most hydraulic fluids
• Withstands high peak pressures
• Minimal no-load pressure drop even at high speed
• High power options
• Two speed options
• Rotating case options
