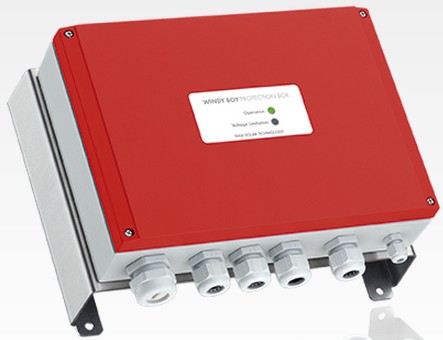

Sma Wind Energy Inverters, Windy Boy Protection Box 600

We offer sma wind energy inverters, windy boy protection box 600. The windy boy protection box can do it all: it protects the inverter from excess voltage by feeding excess generator voltage to a load resistance, which slows down the turbine. In addition, the box features a three-phase rectifier. It is delivered as a turnkey unit and can be used with nearly all types of arrays made by different manufacturers in various power classes. The box is thus suited for use with wind plants as well as for other permanent magnet generators such as small water power plants and chp systems.
secure
highly dynamic overvoltage protection
optimal start-up performance of the wind turbine
reliable
high efficiency of the integrated inverter
feed-in-in even at excessive array voltage
easy to use
easy installation
three-phase array connection
available in three voltage classes: 400 v, 500 v and 600 v
-general information
suitable for wb 3300, wb 3800, wb 3600tl, wb 5000tl
rectifi er integrated
dimensions (w / h / d) 280 /220 / 130 mm
weight 5 kg
-pv array connection
quantity 1 x three-phase
ac voltage 3 x 0 v – 500 v
ac current 3 x 0 a – 11,5 a
array frequency 0 hz – 400 hz
nominal power 3 kw – 5 kw
-windy boy connection
quantity 3
voltage limitation (dc) 500 v
total power 5 kw
-load resistance connection
quantity 1
nominal voltage (dc) 500 v
continuous power 5
-efficiency
max. Efficiency > 99.95 %
conduction losses at continuous power 20 w
-general data
ambient temperature -25 °c . +60 °c
degree of protection (according to iec 60529) ip54
-accessories
load resistance opt.
the windy boy protection box can do it all: it protects the inverter from excess voltage by feeding excess generator voltage to a load resistance, which slows down the turbine. In addition, the box features a three-phase rectifier. It is delivered as a turnkey unit and can be used with nearly all types of arrays made by different manufacturers in various power classes. The box is thus suited for use with wind plants as well as for other permanent magnet generators such as small water power plants and chp systems.
secure
highly dynamic overvoltage protection
optimal start-up performance of the wind turbine
reliable
high efficiency of the integrated inverter
feed-in-in even at excessive array voltage
easy to use
easy installation
three-phase array connection
available in three voltage classes: 400 v, 500 v and 600 v
-general information
suitable for wb 2500, wb 3000, wb 5000a, wb 6000a
rectifi er integrated
dimensions (w / h / d) 280 / 220 / 130 mm
weight 5 kg
-pv array connection
quantity 1 x three-phase
ac voltage 3 x 0 v – 500 v
ac current 3 x 0 a – 11,5 a
array frequency 0 hz – 400 hz
nominal power 2 kw – 7 kw
-windy boy connection
quantity 3
voltage limitation (dc) 600 v
total power 7 kw
-load resistance connection
quantity 1
nominal voltage (dc) 600 v
continuous power 7
-efficiency
max. Efficiency > 99.95 %
conduction losses at continuous power 30 w
-general data
ambient temperature -25 °c . +60 °c.
degree of protection (according to iec 60529) ip54
-accessories
load resistance opt.
