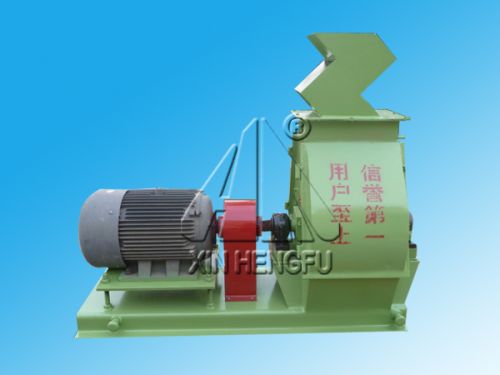

Small Animal Feed Hammer Mill Machine

We offer small animal feed hammer mill machine. *the crush room is designed as water drip figure. With special twice crush design; the output can be increased by 25%. It can fully to meet the coarse and fine crushing requirements.
*stable running and reliable operation contributes to effectively reduce wear and thereby prolong the service life
*with full open operating door, screen is tensioned outside and can be maintained and replaced easily.
*mill rotor balancing by check,equipment operation less vibration,less noise,more stable
model sfsp56*36 sfsp56*40 sfsp708*40
rotor diameter(mm) 560 560 708
crush room width(mm) 360 400 400
rotate speed(rmin) 2900 2900 2900
number of hammers 40 40 40
capacity(th) 1-3   2-5 3-8
main power(kw) 22 37 55
weight(kg) 800 920 1600
dimension(l*w*h)mm 1430*700*1000 1500*700*1000 1850*750*1250.
