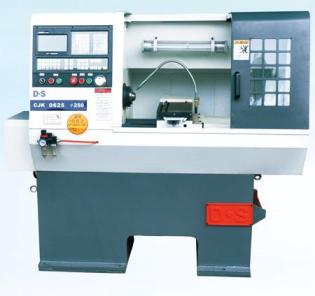

Small CNC Lathe

We are offering cnc lathe. Ck6120 cnc lathe is an affordable full-featured economical machine, widely used in the mass processing of the auto parts, motorcycle parts, valves and other parts.
as a mechatronics machine, it has elegant appearance, reasonable structure, high precision and easy to operate.
the operating mode of one-person-multi-equipment makes the labor cost and electricity cost greatly reduced.
made of cast iron, the ultrasonic frequency quenched guide way has a good wear-resistance, working accuracy and can extend the working life. We can provide three claw chuck, collet chuck at user's request.
product appearance and technical parameters will be changed as the development and innovation without notice.
items units specifications
maximum swing over bed mm φ250
maximum swing over slide mm φ100
maximum machining length mm 250
spindle head type gb59001 defined by us
spindle taper hole mm φ38
slide trombone bore mm φ30
spindle speed range r/min 960-1440
main motor powder kw 2.2/2.8
grip size / chuck size mm φ44/φ100
x-axis travel mm 280
rapid traverse speed on x/z-axis mm/min 5000/6000
turret type （electric knife or row knife）
tool size mm 12×12
overall dimensions（l×w×h） mm 1320×630×1390
weight kg 500.
