Small Concrete Mixing Machine

₹ 1.81 Lakh / 5000 5000 Piece

MOQ1 Piece(s)
Total Weight1970kg
Productivity10-14m3/h
Discharging Volume350L
Outline Size4010×2140×3340mm
Charging Volume560L
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Product Details

Productivity10-14m3/h
Charging Volume560L
Total Weight1970kg
Discharging Volume350L
Outline Size4010×2140×3340mm

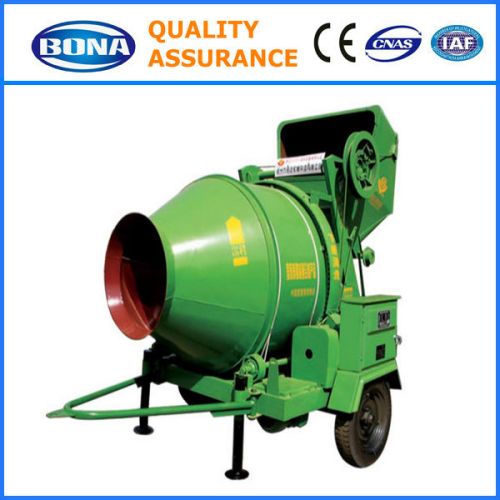

We offer jzc350concrete mixer is a kind of self-fall double-prick reversal discharging machine; the drum is driven by the gear ring; during working, the frontal revolution is mixing, and the reversal revolution is discharging. The plastic and half-dry hard cement can be mixed. It is applicable to the common construction working site, road, bridge and each kind of cement manufacturer.
jzc350 main technical parameters
charging volume: 560l
discharging volume: 350l
productivity: 10-14m3h
mixing canister rotate speed: 14rmin
maximum size of aggregate: 60mm
water-supply error: ≤ 2%
discharging height: 1250mm
mixing electric motor: 5.5kw(y132s-4)
water pump electric motor: 0.55kw(40jdb-12)
outline size (l×b×h): 4010×2140×3340mm
total weight: 1970kg
