Small Fragment - Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral is available in various lengths. There are two version of the plate left and right separately designed for right and left humerus. The....

View More Details

Send Enquiry

Company Information

NARANG MEDICAL LIMITED

Naraina, Delhi

View Number

Member Since 16 Years
Nature of Business Retailer
Year of Establishment 1953

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

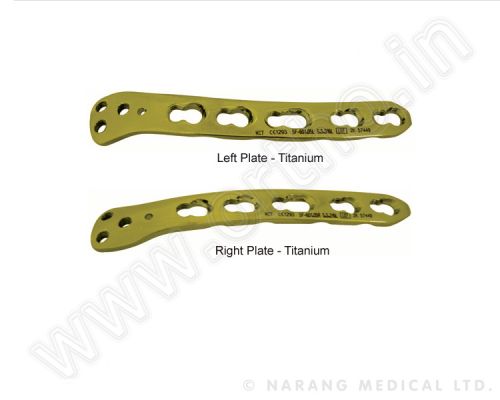

The Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral is available in various lengths. There are two version of the plate left and right separately designed for right and left humerus. The plates are pre-shaped to match the anatomy of the distal humerus with a limited contact low profile design.
The Head Region of the plate accommodates safety Lock Screw Φ 2.7 mm-Self Tapping and shaft region accommodates both cortex screw Φ 3.5 mm-self tapping and Saftey Lock screw Φ 3.5 mm-self tapping
The Distal Humerus safety Lock Plate 2.7/3.5, Dorsolateral is indicated for intraarticular fractures of the distalo humerus, comminuted supracondylar fractures, osteotormies, and non-unions of the distal humerus.

No. of Holes	STAINLESS STEEL
No. of Holes	Left	Right
3	SF-601.03L	SF-601.03R
5	SF-601.05L	SF-601.05R
7	SF-601.07L	SF-601.07R
9	SF-601.09L	SF-601.09R
14	SF-601.14L	SF-601.14R

No. of Holes	TITANIUM
No. of Holes	Left	Right
3	Ti-SF-601.03L	Ti-SF-601.03R
5	Ti-SF-601.05L	Ti-SF-601.05R
7	Ti-SF-601.07L	Ti-SF-601.07R
9	Ti-SF-601.09L	Ti-SF-601.09R
14	Ti-SF-601.14L	Ti-SF-601.14R
