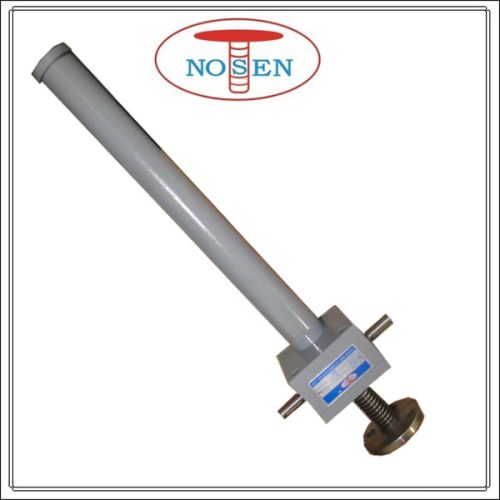

Small Jack Hoist Lift For Leveling and Lifting

NOSEN Electric heavy duty worm gear screw jacks for lifting or loading 20KN.Nosen company has 10 years experience in this line .Have accumulated our special experieneand methods to control the quality through the whole process.The customized service we provide has helped our worldwide customers solve lots of problems.  Model Details of RNF030 * Model  RNF030 * Screw  Diam 30 mm * Screw Pitch  6 mm * Static Load  max 20 kN * Dynamic Load max 20 kN * Speed Ratio  1/6 1/24 * Lifting Speed max 1500 mm/min * Input Power 0.009-1.690 kw * Max Input  1500 rpm * Screw Type trapezoidal screw * Stroke Range  max 1400 mm * Top End top plate, clevis end, threaded end, plain end * Power Source electric, manual, both Materials *Lifting screw  steel C45 (optional: stainless steel) *Worm Gear phosphor bronze (optional: zinc alloy) *Worm Shaft
