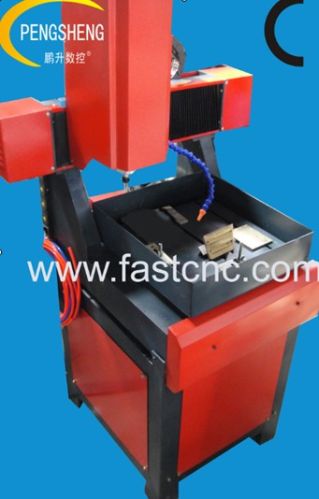

Small Metal Engraving Machine, Brand Name : Penn

We are offering Small Metal Engraving Machine.
Feature:1.The Spindle equipment is the first brand of the world, China domestic Constant power rate metal engarving water cooling spindle. 2.Three axes adopt imported ball screw and cirle orbit,stable working,high precision and long life time. 3. X axis is dustproof.It makes sure the steady working performance of the
machine for long-term using. 4. Well compatibility:CADCAM designing software e.g. Type3ArtcamCastmateWentai etc. 5. Has the function of forecasting process time. 6. High precision,the curving and linear speeds are consistent.Adopting excellent parts makes the fault rate to be the lowest one.
Technical Parameter:
Model PC-3030M
X.Y working area（mm） 300*300
Z working area 60mm
Resolution 0.01mm
X,Y,Z structure Taiwan ball screw
Max speed 9mmin
Spindle power 1.5KW2.2KW
Spindle rotating speed 0-24000rmin
Cooling mode Water cooling
Working voltage AC220V5060 Hz ,2PH
Drive Motor Stepper
Command G code*.u00*.mmg*plt
Operating system NC Studio
Diameter of cutter 3.175-12.7
Work-holding By clamp
Net weight 150kg
Applicable Industries:Moulding industry,it can engrave all kinds of metal molulding, especial for autocar foam moulding, steamship wooden model,aviation wooden model,train wooden model,etc. Musical instrument industry,it can engrave 3D surface of large scale musical instrument and the contour cutting
Applicable Material:Metal,plastic,PVC,Wood,MDF,
etc.
