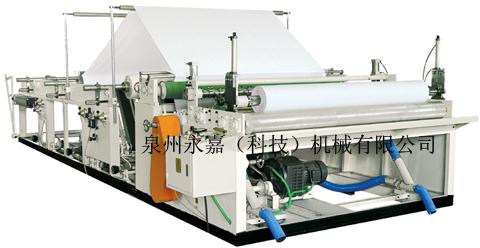

Small Paper Rewinding Machine

We are offering small paper rewinding machine.
small paper rewinder refers to cut the jumbo roll paper cutting into large rolls of toilet paper, mainly used for hotels, airports and other large public toilets.
  main features：
1. gassing axis used to make paper tube is accurate, simple
2. embossing system: using steel to steel blank holder, independent gas steel adjustment, convenient adjustment, each layer of paper stratification;
3. horizontal type unwinder, paper is pneumatically loaded on machine, save manualhandling
4. paper is pneumatically loaded on machine by wide leather，each roll of jumbo paper are independent tension adjusting device
5. adopts inching switch before and after drawing the jumbo roll paper, simple and safe operation.

technical parameters
model 1575 1760 2200 2500 2800
the width of jumbo rollpaper mm 1750 2000 2150 2400 2700
the diameter of jumbo roll paper mm standard φ1100mm，please specify the other sizes
rewinding diameter mm 400mm （90-300）
roll quantity 3a（can specify）
paper core diameter mm 3”（76.2mm）（please specify the other sizes）
production speed mmin
180-200mmin
pneumatic system
3 air compressor，minimum pressure5kgcm2pa（customer owned）
installed power 4.5kw 380v,50hz
embossing system steel to steel
dimension 6.2x2.6x1.8 (l x w x ht);(m)
machinery weight 2.5t
