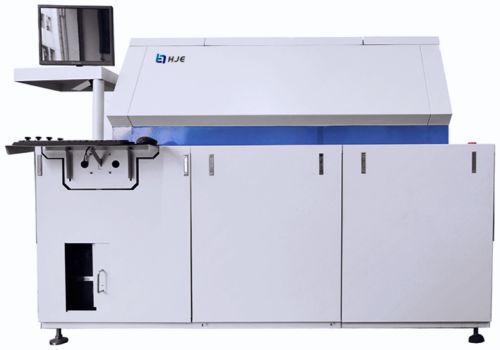

Electric Semi Automatic Small Size Reflow Oven, Color : Off White

Driven TypeElectric
Automatic GradeSemi Automatic
ConditionNew
ApplicationDrying Process
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

Features Practical reflow welding, small footprint, strong structure, furnace is not easily variable, good sealing performance, special furnace design, stable temperature control. Suitable for small....

View More Details

Send Enquiry

Product Details

Features

Practical reflow welding, small footprint, strong structure, furnace is not easily variable, good sealing performance, special furnace design, stable temperature control. Suitable for small electronic products with low-capacity requirement. With strict requirements for the temperature and welding quality. Suitable for companies with laboratory or research companies.

Specification:

Model No	HJE-400
Outer Dimension	L2100×W1400×H1650mm
Net Weight	Approx. 850KG
Exhaust airflow rate	*10m3/min1 channel**
Power Supply	5W3P; 380V 50/60HZ; （□ O: 220V 50/60HZ）
Power Demand	Total power 35KW，Working power 7KW
Warming Time	约20mins
Temp. Setting Range	Room Temp.--300°C
Rail Width	560mm
Components Clearance	PCB Top 30mm
Transportation Direction	L to R
Conveyor Height	900±20 mm
Transportation Speed	300-2000mm/min
Data Storage	Multiple production mode data
Board Dropped Alarm	Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Abnormal Alarm	Abnormal Temperature (Extra-high / Extra-low Temp.)
No of Heating Zoon	Up 4 / Bottom 4
Control Mode	WINXP+PC+PLC
Temp Control Mode	PID Close Loop Control+ SSR Driving
Transportation System	By Rail
Transportation Control Mode	Inverter + Transportation Motor
Upper Cover Startup	Drive by electric，Convenience for cleaning
UPS	Backup power
