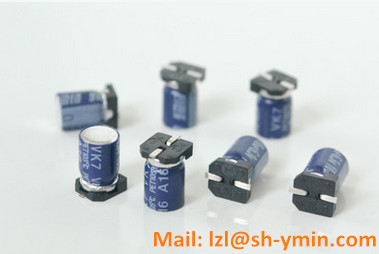

Small Size SMD Aluminum Electrolytic Capacitor

Smd aluminum electrolytic capacitor must meet below requirements for led lighting source.
-enduring high temperature, enduring high ripple current
-long lifetime, cover full voltage range
-suitable sizes, low price
introduction for smd aluminum electrolytic capacitor for led lighting source from ymin.
Vk7 (miniature type)
characteristics: 105c 4000hrs-6000hrs, 7.7mm height, super small size.
Rated voltage(v.dc):6.3v-400v (-40c-+105c);
rated capacitance(uf):1-680uf
size: smaller than or equal to dia.10x7.7,larger than or equal to dia. 5x7.7
working temperature: lower or equal to 80c,ensure 30000hrs lifetime.
Application: specially designed for mini size integrated led power supply, available for high density and full automatic surface mounting and high temperature reflow soldering products.
Vkm (standard type)
characteristics: 105c 7000hrs -10000hrs,
long life, mini size, enduring high frequency and large ripple current.
Rated voltage(v.dc):
10v-100v (-55c-+105c); 160v-500v (-40c-+105c)
rated capacitance(uf):0.47-10000uf
size: smaller than or equal to dia.20x21.5,larger than or equal to dia. 5x10
working temperature: lower or equal to 80c,ensure 50000hrs lifetime.
Application: specially designed for long life led power supply, available for high density and full automatic surface mounting and high temperature reflow soldering products.
main customers:
iris, nitto seiko, osram, panasonic, tcp, leedarson, nvc, yankon, opple etc.
