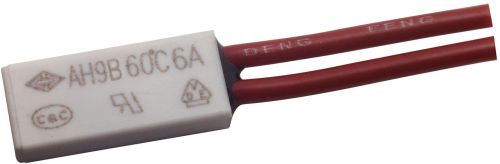

Small Size Thermal Protector Thermostat

We are offering small size thermal protector thermostat.
Description:
ah9 series is auto-reset temp-sensing protector, divided into l & m & s sizes according to different current-carrying capacity. There are metal & plastic case for your choice, metal case are higher temp-resistanced.
The snap-action of bimetal will cut off the circuit when pre-calibrated temp are reached , protecting electricals from fault condition, the bimetal will auto-recover to connect circuit as the temp drops to reset temp-rating.
Achieved being the pioneer of fully-automatic producing line！
1. Innovative thermostat，patented product: zl201320793282.6 2. The mian structure of integrated injection molding is more reasonable and more compact.
3. Square silver contact with longer resistive cycles and larger current-carrying capacity.
4. Imported bimetal strip, avoided the influence of natural thermal effect,small temperature drift and longer service cycles.
5. Self r&d and supply of injection parts，lcp materia used to guarantee high strength，flame retardent，endure high temp over 300 ℃!
6. Ul, cqc, vde, rosh, reach certified! applications：transformer, series motor, lighting, ni-mh battery,vacuum cleaner, massage chair, seat heating pad, electric blanket etc.
specifications：
type：nc no
electrical ratings：ac250v8a ac125v16a
operating temp：50℃-150℃（5℃ a step）
operating tolerance：±3℃ ±5℃
reset temp：30℃±15k
contact resistance：≤50mω
insulation resistance：≥100mω
load time：10000 cycles
