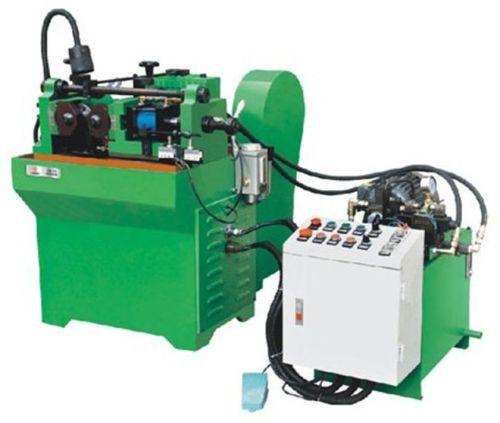

Small Size Thread Rolling Machine, Certification : ISO 9001-2008, CE

₹ 5.14 Lakh / 6350 6350 Set

MOQ1 Set(s)
CertificationISO 9001-2008, CE
Applicationbars,solid pipe,solid tube
Total Carbohydrate12 months
Supply voltage380V
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shenzhen Tobest Machinery Manufacturing Co. Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 1998

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Total Carbohydrate12 months
CertificationISO 9001-2008, CE
Applicationbars,solid pipe,solid tube
Dimension(L*W*H)1330*1120*1050mm
Weight(reference)540(KG)
Supply voltage380V
Bearing brandNSK,UBC

we offer Small Size Thread Rolling Machine.
Work piece diameter φ2-φ14mm
Range of pitch rolled 0.4-2.0P
length of thread rolled Fixed and rolling through for option
Spindle speed 27rpm
Outside diameter of rolling die φ100mm
Inside diameter of rolling die φ50.5mm
Thickness of rolling die 30mm
Min.Distance between die spindles 100mm
Max.Distance between die spindles 135mm
Machine motor 3HP(2205W)
Distance from lathe bed to rolling die 85mm
