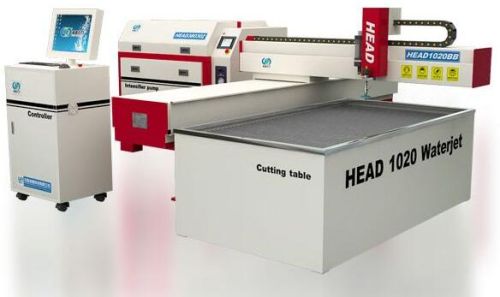

Small Water Jet Cutting Machine

We are offering small water jet cutting machine 1000mm*2000mm.
Tap water is impressed to 200-400mpa by uhp intensifier, and then a waterjet with high speed of 800-1000ms is made through a small gem nozzle with bore size of 0.1-0.35mm. This waterjet has high energy and it can cut soft materials such as paper, rubber, sponge, etc. Furthermore, if mixed proper quantity abrasive, it can cut all kinds of soft and hard materials such as glass, marble, ceramics, stainless steel, etc
intensifier pump for cnc water jet cutting machine
a. Accustream brand intensifier import from the usa
b. Electronic direction regulation
c. 7-inch touch screen, man-machine interface indicate working conditions error
d. Maximum flow of hydraulic pump: 90lmin
e. Maximum discharge capacity: 3.7lmin
f. Integrated heat exchanger, high heat exchange ratio and good effect
g.two-step up water supply
h. Few wear parts in the intensifier,save the cost
(2)cutting table for cnc water jet cutting machine
a.flying arm style,easy to load and unload material,
b.separated body between cutting table and platform,
c.x beam of cutting table applies the one-off extrusion forming aluminum alloy,
d.load-bearing beam with overall shield to avoid dust,
e. Flexible coupling of motor and ball screw, high qualiy abba ball screw and linear guide,
f.use fluorocarbon coating, more than 20 years of corrosion resistance
cnc controller for cnc water jet cutting machine
a.19inch lcd
b. Support dxf file ,can use autocad to produce dxf file
c. Use ipc and the professional software based on windows xp
d. Use omron plc instead of relay
optional parts of cnc water jet cutting machine:
auto abrasive feeder, auto abrasive removal system, 4-axis cutting head, wireless handle, deionization system, oil chiller.
