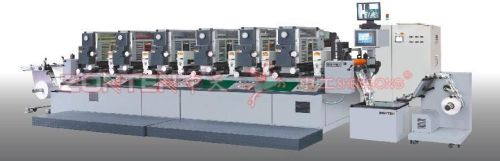

SMART-320Rotary & Intermittent Letter Press High-speed Label Presses

Characteristics :
1. Servo-control System Achieves Optimization Control Of Machine, Which Assure High Accuracy And Stability For Registration.
2. Creative Front & Back Vacuum Driving Roller And Ceramic Roller In Paper-feeding System Saves Extra Substrate For Removing Rider Wheels.
3. Special Printing Unit Combined Rotary Letter Press & Intermittent Printing, Convert Both Functions Easily On One Machine.
4. Creative Lateral & Lineal Registration System Electrical Controlled Can Be Adjusted Easily Through The Panel On Printing Unit Or Center Control Screen.
5. Creative Ink Distributing System Avoids Bar Marking And Ghosting, Inks Volume Varies With Printing Speed Automatically.
6. This Machine Is Best One To Print Middle & Top Class Labels In Large, Medium And Small Batch Of Production.
7. Indicate Malfunction Of Machine On The Center Control Screen To Speed Up The Maintenance Of Machine.
Technical specification :
Max. Web width 310mm
Max. printing width 300mm
Printing repeat intermittent 50-260mm rotary 55~96T(174.6-304.8mm)
Color 2-9 colors
Thickness of substrate 0.1~0.3mm
Machine speed intermittent 250r/min rotary 75m/min
Max. unwind diameter 700mm
Max. Rewind diameter 700mm
Total capacity 17.3KW (Not Including UV)
Power 380V/AC. Three-phase 50/60H 50A
Overall dimension(L×W×H) 6800×1600×1400mm
Machine weight 6800kg/6 colors
