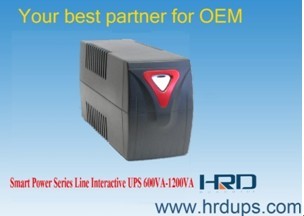

Smart Power Series Line-Interactive UPS

We are Offering Smart Power Series Line-interactive Ups
ideal Application: Pc, Pos System, Small Office Etc.
main Features:
micro Controller Based Intelligent System
no Load Shutdown
auto Charging At Both On/off Mode
inbuilt with Avr
overload and Short Circuit Protection
pre-alarm Audio & Visual Signals for Battery Low
battery Deep Discharge Protection
user Friendly
specifications:-
rating 600 Va 800 Va 1000 Va 1200va
input
voltage Range 145-280vac Or,80vac To140vac
frequency 50hz +/- 6%
output
power 600va/360w 800va/480w 1000va/600w 1200va/720w
voltage(inverter Mode) 220vac or 120vac (nominal)
frequency(inverter Mode) 50hz +/- 2%
voltage(mains Avr Mode) 220/120vac +/- 12%
transfer Time (typical As) 3 M.s.
protection
surge Protection optional provided
input Fuse provided
modem/network(optional) rj-11 rj-45
battery
type sealed Lead Acid Maintenance Free
number 1 No. 12v 7ah 2 No. 12v 7ah 2 No. 12v 7ah
typical Recharge Time 8 Hours (upto 90% of Full Capacity)
protection deep Discharge Protection
deep Discharge Protection user Replaceable
physical
net Weight(kg.) Approx. 7.0kg. 13.6 14.6
gross Weight (kg) Approx. 7.5kg. 14.4 15.6
dimensions(wxhxd) Mm 95x146x313 Mm 120x196x385 120x196x385
led Indication Inverter On, On Mains Normal, Mains On, Low Battery Trip.
colour Mains Normal Green On Battery Mode Orange Over Load/batt. Low/batt. Mode Short-circuit Trip Red No Load Shut Down Red Blinking Alarms On Battery Mode Beeps Every 30sec.
low Battery Pre-alarm continuous Beeping
over Load/batt. Low/batt. Mode Short-circuit Trip Inverter Mode O/p Trip with Continuous Beeping and Low Battery Indication.
low Battery Pre-alarm continuous Beeping
computer Interface Db9(optional) Bi-directional (dry Contact) Mains Failure, Low Battery Pre-alarm Ups & Computer Shutdown Environmental
operating Temperature 0-40 Deg C (32-104 Deg F)
storage Temperature 0-40 Deg C (32-104 Deg F)
humidity 0-95% Rh Non-condensing
higher Capacity Models are Available On Request.
due to Continuous Product Development Specifications are Subject to Change Without Prior Notice.
