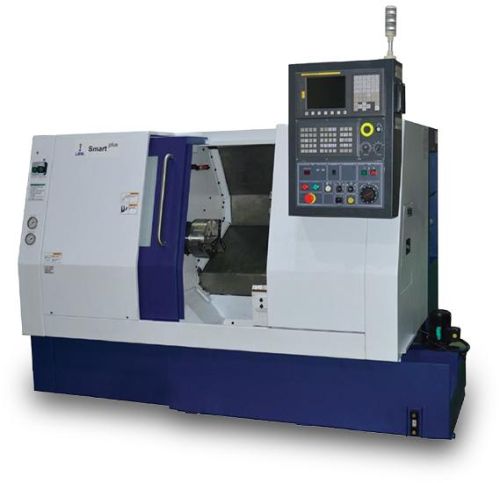

| DESCIPTION | UNIT | SMARTURN PLUS |
|---|---|---|
| CAPACITY | ||
| Swing Over bed | mm | 480 |
| Chuck dia. Max | mm | 169 |
| Max. Turning dia | mm | 280 |
| Max. Turning Length | mm | 355 |
| Admit between centres | mm | 400 |
| SPINDLE | ||
| Spindle nose | type | Flat (Dia: 140) |
| Hole through spindle | mm | 54 |
| Spindle speed | rpm | 4500 |
| Spindle motor power (Cont./S6 40%) | kW | 5.5 / 7.5v |
| FEED | ||
| Cross travel X-axis | mm | 150 |
| Longitunal travel Z-axis | mm | 450 |
| Rapid traverse rate X/Z axes | m/min | 30 / 30 |
| TURRET | ||
| No. of stations | nos. | 8 |
| Tool shank size | mm | 25 x 25 |
| Max. Boring bar dia | mm | 40 |
| Turret Indexing | type | < 1 |
| TAILSTOCK | ||
| Quill dia | mm | 65 |
| Quill stroke | mm | 80 |
| Quill taper | - | MT-4 |
| CNC SYSTEM | ||
| Controller | - | Fanuc Oi TF |
| MACHINE SIZE | ||
| Front x Side | mm | 2310 x 1615 |
| Machine Weight (Approx) | Kg | 2300 |
