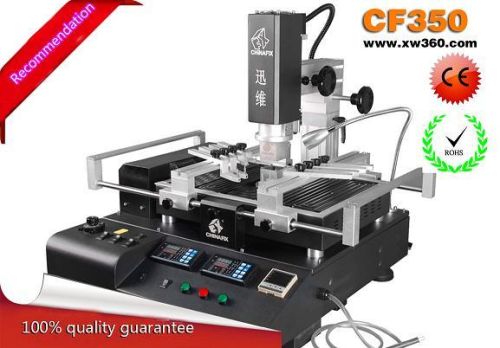

SMD Rework Soldering Station, Brand Name : CHINAFIX

We are offering smd rework soldering station-cf350, working parameter
model
chinafix cf350
solder type
leaded solder /lead free
smd type
micro bga,bga,csp,qfp
pcb thickness
0.5mm~4mm
pcb size
w50mm*d50mm~w455mm*d350mm
heating mode /power(upper)
hot-blast air /800w
heating mode /power(bottom)
hot-blast air /800w
preheating mode/power
ir / 2400w
pcb location mode
shape or tongs
driving mode
gear,rack
control/adjusting mode
temperature control instrument
temperature range
room temperature 0~400°c
main power
4000w
supply voltage
110v/220v
machine dimension
610mm(l) * 550mm(w) *600mm(h)
weight
28kg
cf350 characteristic:
1, the hot-air part adopts exported long-life heating coil, through special insulation heating treatment, heating uniformlier, long-life to use well.
2, the design of three warm areas support, can fine adjust to support height, avoid welding-area to sink.
3. The upper hot air-flow can be adjusted, use different air-flow to different chips, it's not easy to make expand.
4, upper and bottom hot-air control temperature separately, it can store 10 items with 16 stages temperature curve setting-up. We can also provide 10 groups of common heating curve.
5, overtemperature protection function,over the temperature, heating coil automatic power off.
6, intelligent mute function, keep mute under non-working condition.
7, new type design of air outlet with mixed wind, air-out temperature uniformilier.
8, machincal part adopts oxidation treatment, main machine box use thicken material, prevent shapeless at whole hog.
9, upper heating part continue to use high-grade products' design of move by x/y shaft, treating all kinds of shapeless chips easiler.
10, three warm areas can be controlled separated, to achieve the function of soldering and dry.
11, complete machine construction adopts the only design of dismounting easily, exchange electric parts simply and conveniently, warranty with fast speed, machine's rate of utilization reaches the highest.
12, allocate vacuum attaching-pen, take down chips easily.
