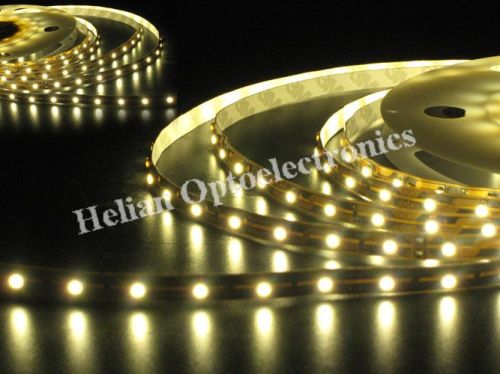

SMD3528 LED Flexible Strip

Features:
1) Continuous Length Flexible Led Light Strips
2) 5 Meters/roll, Can Be Cut Every 5cm
3) Runs On 12-volt Systems like Solar Cell Charged Batteries, Input End Connect Two-core Rvv, Red and Black Wire, Red: V1+; Black: V1-.
4) Super Bright Smd Top Led
5) Solid-state, High Shock or Vibration Resistant
6) Major Reduction in Power Costs
7) 120-degree Wide Angle Illumination
8) No Rf Interference
9) Maintenance Free, with 3m Adhesive Tape On the Back for Easy Installation
10) Long Life: 100, 000+ Hours (10+ Years); White Led: 50, 000+ Hours
11) Low Power Consumption, High Intensity
applications:
1) Architectural Decorative Lighting
2) Archway, Canopy and Bridge Edge Lighting
3) Amusement Park, Theater and Aircraft Cabin Mood Lighting
4) Emergency Hallway Lighting
5) Auditorium Walkway Lighting
6) Stairway Accent Lighting
7) Concealed Lighting
8) Backlighting for Signage Letters
9) Channel Letter Lighting
10) Emergency Exit Path Lighting
11) Cove Lighting
Light Source Specifications:
led Mode: Smd3528
color: Red/green/blue/yellow/white/cwx
angle(2î¸1/2): Â�¥140â°
luminous Flux(lm)
red Green Blue Yellow White Cwx
330 900 270 300 1500 1500
wavelength Coverage(nm/k)
red Green Blue Yellow White Cwx
619-635 512-528 463-475 584-595 5500-6500 8000-11000
led Qty. 300pcs
life Time: 50,000 H
electrical Specifications:
input Voltage: Dc12v
power: 30w
drive Mode: Constant Voltage Drive
connector & Cascade Characteristics
connector: Input End Terminating Unistrand 2 Chip Rvv Red(vi+) + Black(vi-) Line
standard Cascade Qty. : 5pcs
maximun Cascade Features: Â�¤50pcs
appearance Specifications:
hull Material:
dimensions: 5000*8*2mm
color: Yellow
fixed Mode:
application of Gum: 5000*8mm, 3mm Double Sides Adhesive Tape
environmental Specifications:
working Temperature: -40�- +50�
storage Temperature: -50�- +60�
ip Level: Ip33
