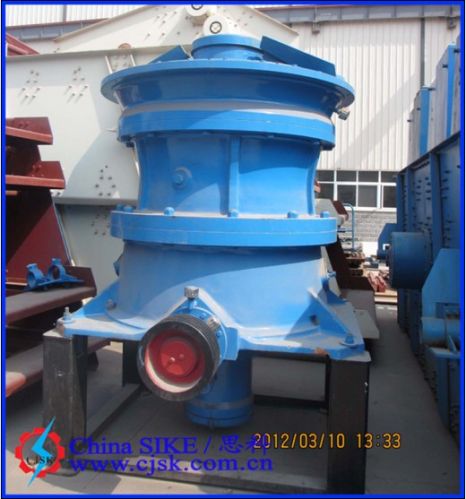

Smg Single Cylinder Cone Crusher

We are offering smg single cylinder cone crusher.
(1) introduction
smg series single-cylinder cone crusher, designed and manufactured by absorbing world advanced technology, is of top level with the advantage of high reliability, high crushing efficiency, low operating cost, good final products of high quality and so on. It is widely used in the field of mining and aggregate processing industries and appropriate for crushing hard and above mid-hard ore and rock, meanwhile, it can be use4d for secondary crushing, fine crushing and sand making.
(2) features and benefits:
1 optimized cavity type, higher capacity and better quality
2 low wear part consumption and operating cost
3 convenient exchange of cavities
4 advanced hydraulic technology
5 big feeding opening design
(3) following factors can enhance the capacity and performance of the cone crusher:
1 choose the suitable cavity based on the material to be crusheed
2 feeding size is right appropriate
3 feed is average distribute at 360 degree chamber
4 automation control device is adopted
5 the discharging area is enough
6 the specification of belt conveyor matches with the max capacity of the cone crusher
7 the specification of vibrating screen is suitable in pre-screening stage and circuit screeing stage.
(4) following factors will reduce capacity of cone crusher:
1 fine material that is less than discharging opening contained in the feeding material is more than 10% of production capacity of the cone crusher
2 the sticky material is contained in the feeding material
3 lack of feeding control
4 the feeding is not even
5 th vibrating screen is not suitable
6 the discharging area of the crusher is not enough
7 feed material is too hard or too tough
