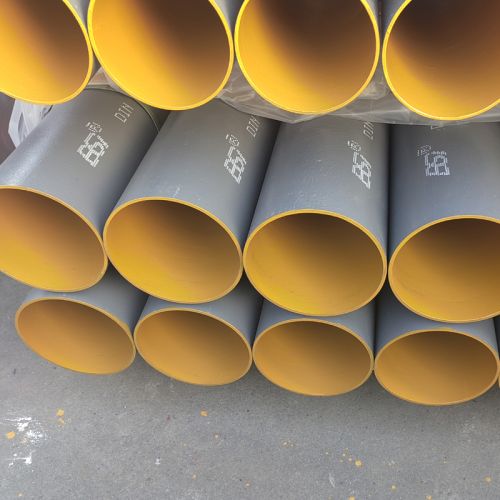

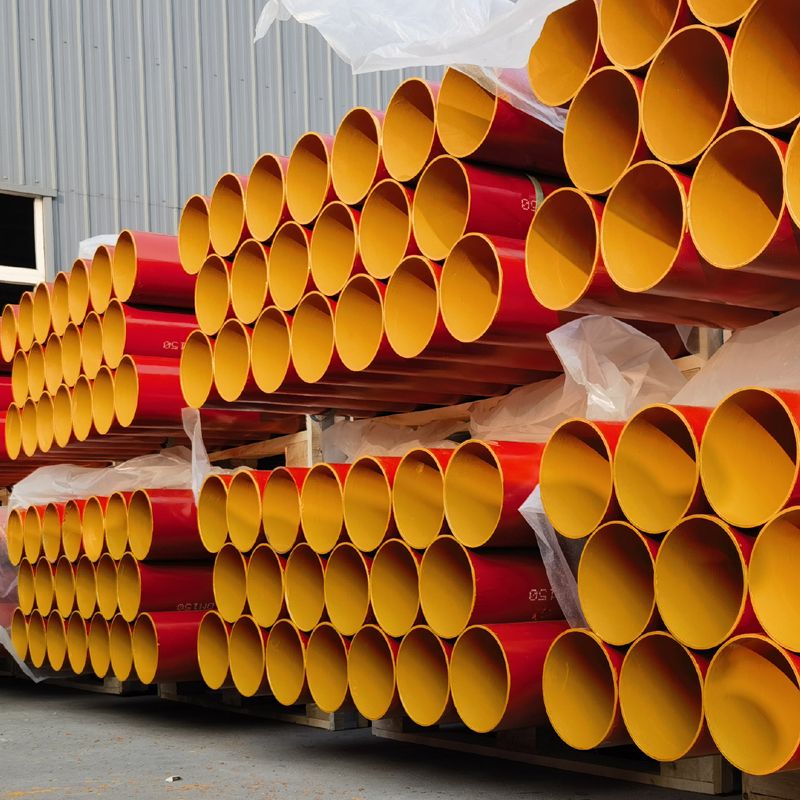

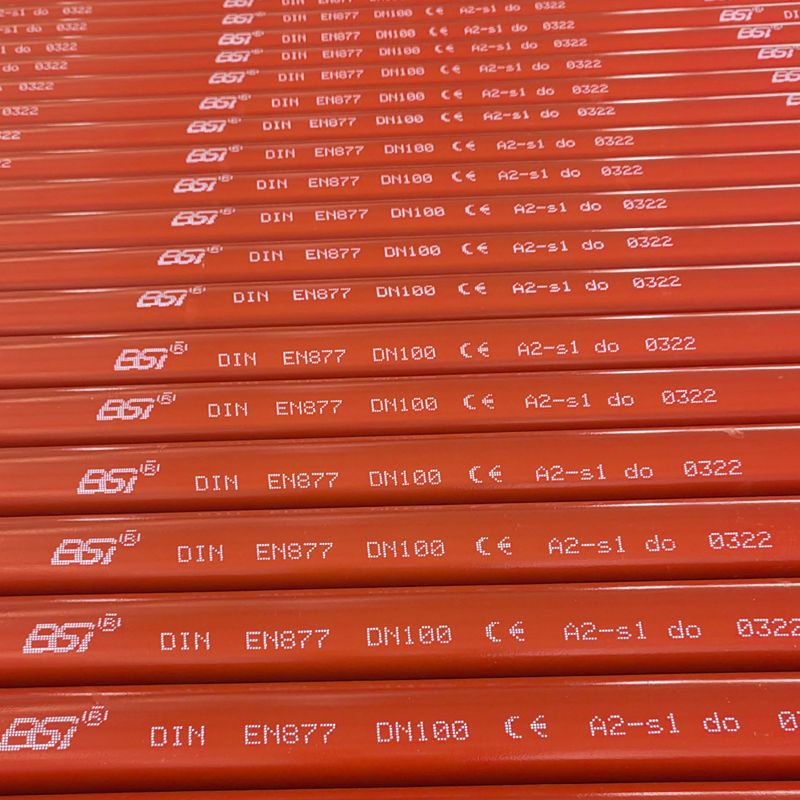

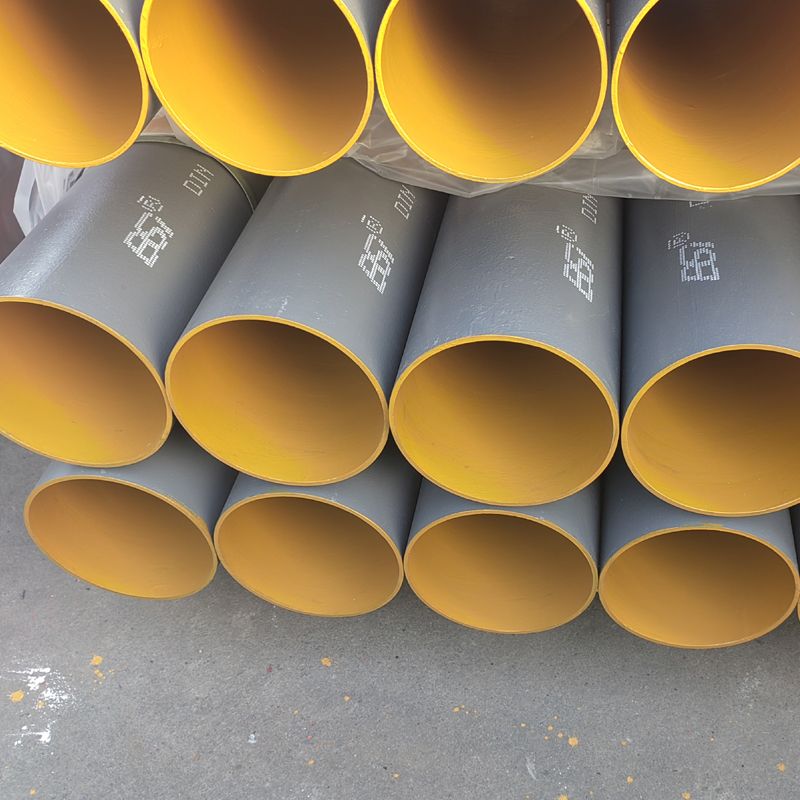

Sml Din EN877 Cast Iron Epoxy Soil Pipes

cast iron pipe confirming to din/en877/iso6594
material:cast iron with flake graphite
qualilty:gjl-150 according to en1561
coating: sml,kml,bml,tml
size:dn40-dn300
the gray cast iron soil pipes produced by centrifugal technology which are used
in drainage sewer system and ventilation ducts system through a flexible linkage.
which have following advantages :flat straight,even pipe wall.
high strength and density,high smoothness internal and external surface,
no casting defect, easy installation, easy maintain, long using life,
environmental protecting,fireproofing and no noise.

sml din/en877 cast iron socketless pipes

sml above ground soil, vent and rainwater pipework

    1=  2 part epoxy
    2= cast iron
    3= anti-corrosive primer

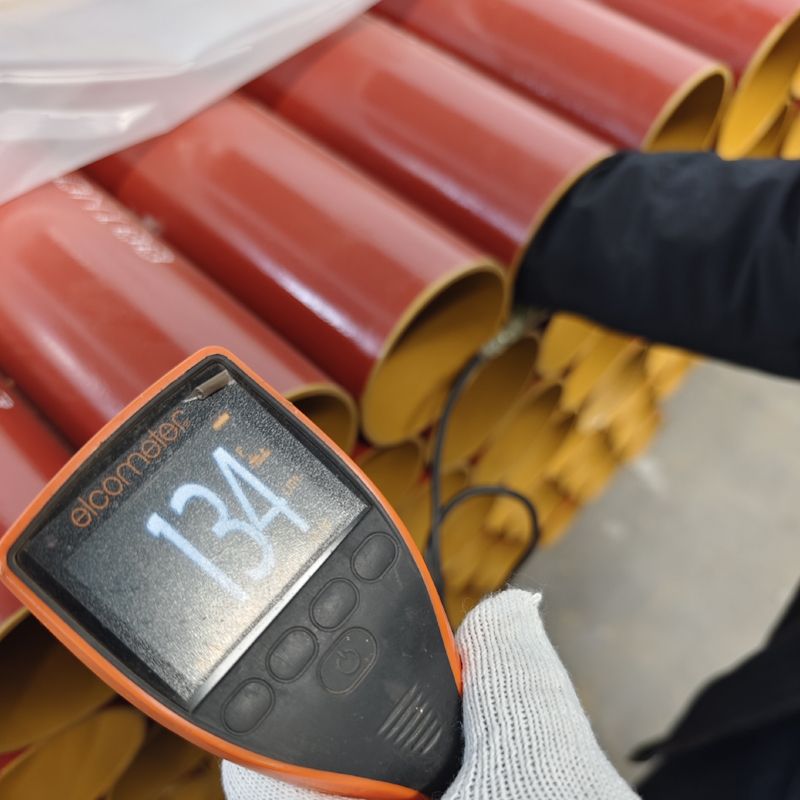

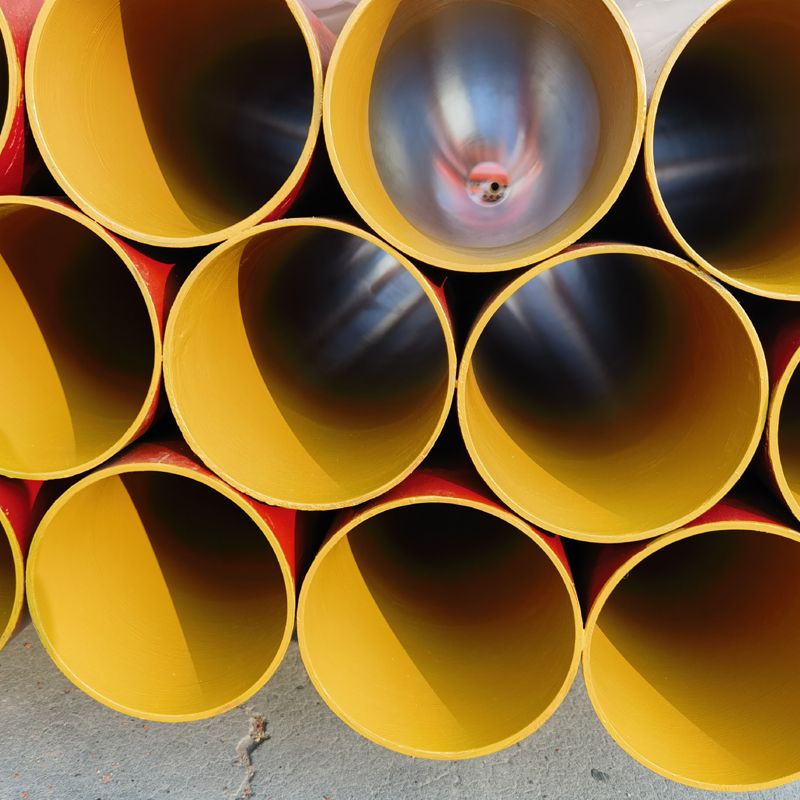

 internal painting : two-part epoxy resin painting, ochre colour ral 1021,
                          with an average dry thickness of 120 microns.
   external painting: anti-corrosive primer painting, red-brown colour ral 2001,
                            with average dry thickness 60 microns.

.
