Smoke Fire Damper Frame Roll Forming Machine

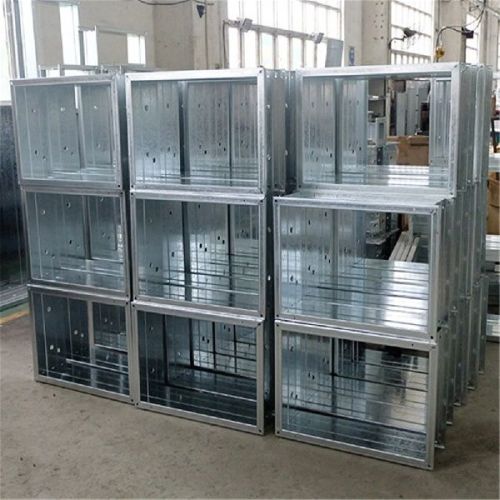

The Fire Damper Frame Roll Forming Machine is an automatic production line of galvanized strip, which is open, leveling, servo punching (punching), cold bending forming and cutting the ruler. We developed the first PLC-controlled auto line for fire damper frame. It consists of decoiler, straightening, grooving, notching, roll forming machine as well as folding machine. Fire Damper Frame Machine is suitable for different size damper manufacture. Maximum speed is 13m/min. With this machine you can have a fully automatic damper workshop, which reduces the labor cost greatly. The advantages of automatic Fireproof Doorframe Roll Forming Machine are as follows: 1. Gearbox driving, for high accurancy forming and stable long-life working  2. Fully Automatic forming and bending, all steps only need one person. save and lower labor cost. 3. First time in China, Fire Damper Forming Making Machine Made with Taiwan Technology but China Price. 1. Profile Drawing and Products for Reference 2. The Chart of Process flow 3. Technical specification and details Machine list 5 ton passive de-coiler  1 set Leveller 1 set Punching 4 sets Main roll forming machine 1 set PLC Control box 1 unit Hydraulic station 1 unit Out table 2 units 4. Equipment appearance for your reference 5. Scene application 6. Customer 7. Loading 8. Payment terms and after-sale service
