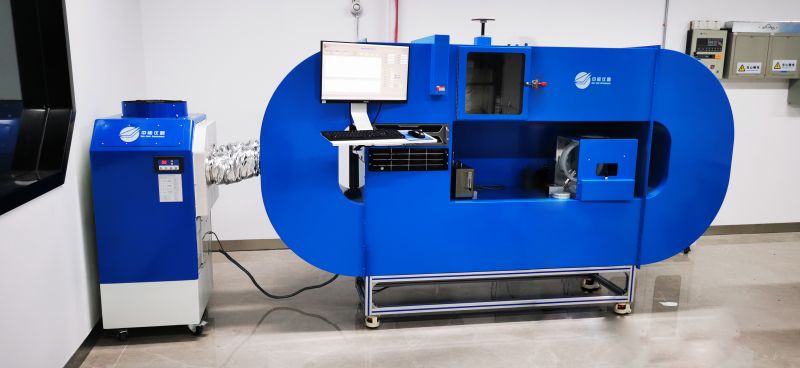

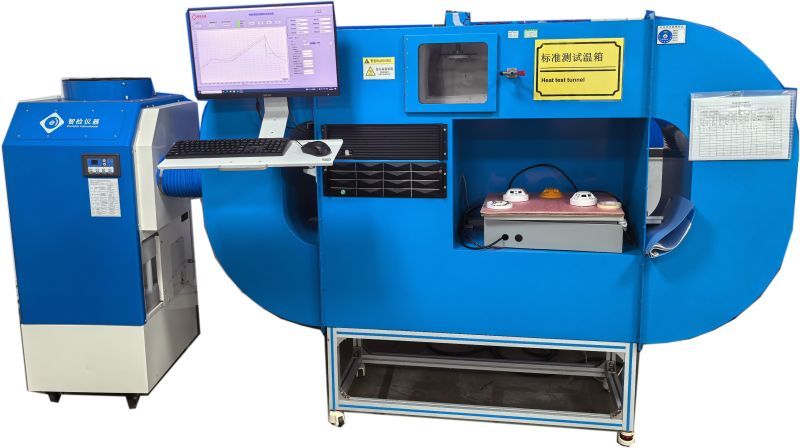

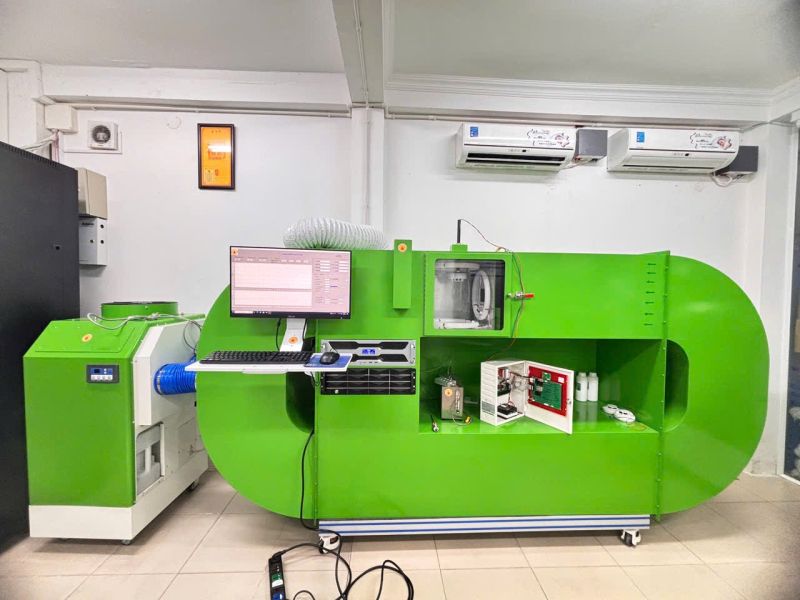

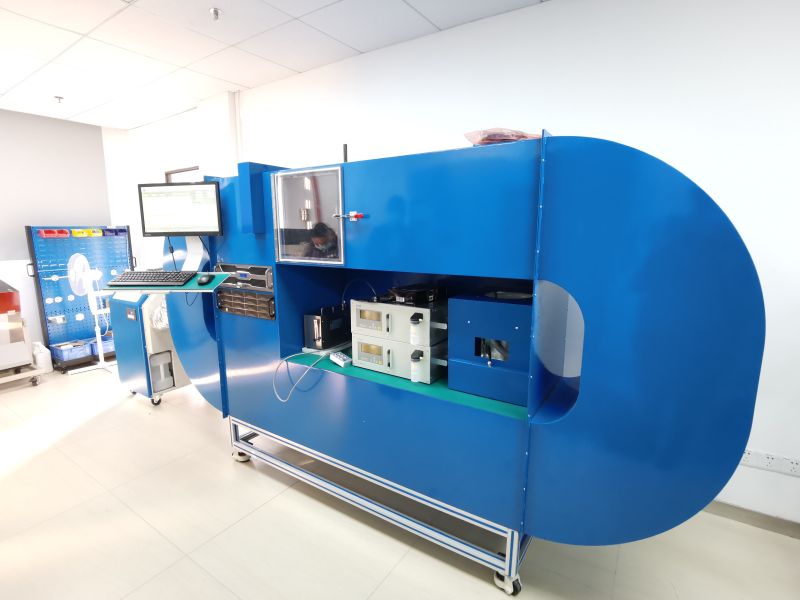

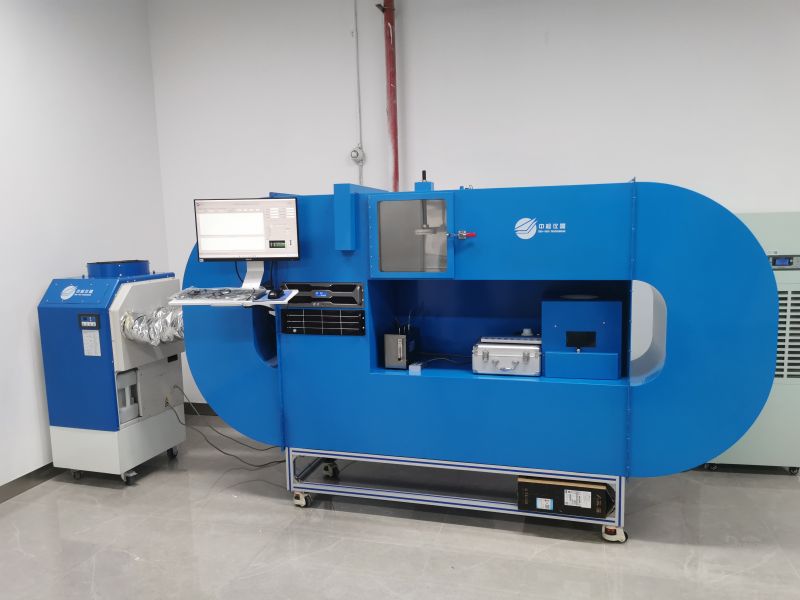

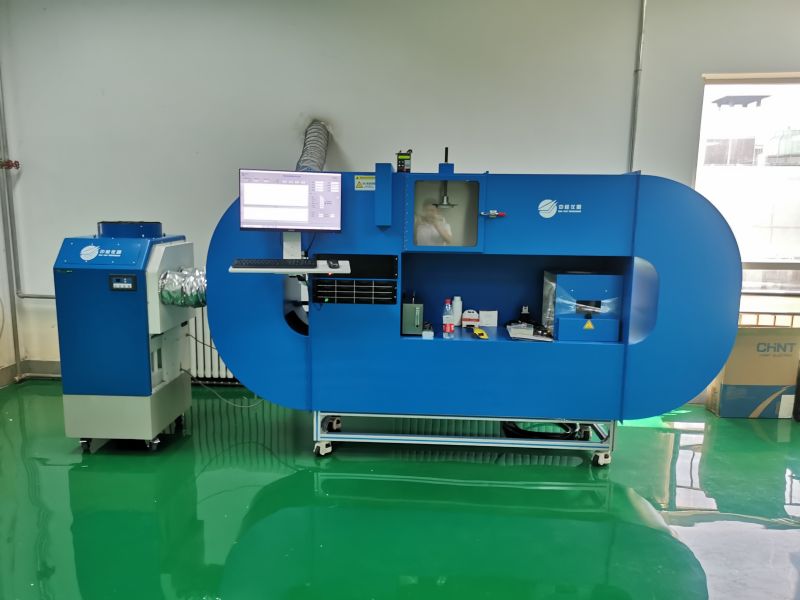

Baked enamel metal zomtest Smoke Heat Detector Test Tunnel

Equipment Function：

The smoke heat detector test tunnel was designed for sensitivity test of Smoke or Heat alarms/detectors according to GB 20517、GB4715、GB4716、EN 14604、EN 54-7 、EN54-5、BS 5446-2 and ISO standards. It consist of insulated test tunnel，aerosol generator, obscuration sensor, heat element, cooler, controller and computer. The obscuration meter was made of high quality imported part to ensure precision and stable reading. The Zontest Smoke Test Tunnel Software in English was designed by our software expert specifically to meet the standards test requirements.

Specification ：

1．Model：ZNEN54-75HC

2．Power supply：380V AC 20 kW，5m power cord provided

3．Tunnel size: 3.1m x 0.7mx 2.1m.

4．The tunnel section size is 450mm x 400mm

5．Aerosol generator：
Built in Thomas brushless pump imported from Germany,
Agent：Liquid paraffin, 500ml provided
Particle size distribution between 0.5µm~1.0µm,
Smoke rising rate: 0.015 dB/m/min≤⊿m /⊿t ≤0.1dB/m/min, preset to 0.05dB/m, which can be set in the software

6．Optical smoke densitometer:
ADI circuit and advanced optical design
transmitted light, wavelength 880nm~950nm, range: 0~2 dB/m,
measuring range: 0 ~ 2 dB / m, measuring error shall not be greater than m×5%+0.02dB/m

7．Wind speed: 0 to 1.5 m/s continuously adjustable via software setting
when the wind speed is set at 0.2m/s, the fluctuation range is less than ± 0.02m/s; when the wind speed is set at 1m / s, the fluctuation range is less than ± 0.1m/s

8．High temperature test function of smoke fire alarm: room temperature ~ 55 ° C, temperature control accuracy + / - 1 ° C, dry heat sensitivity test can be carried out in the smoke box, standard number can be selected by software, and the program can automatically control to the corresponding temperature, which can meet the different requirements of European and national standards

9．Low temperature test function of smoke fire alarm: 0 ° C ~ room temperature, temperature control accuracy + / - 1 ° C, and 0 ° C sensitivity test can be realized in the smoke box

10．        Dazzling test device: removable dazzling test device, software on/off automatic control.

11．        Constant smoke control function: the smoke box is equipped with constant smoke control function, which can set the constant smoke concentration and automatically control the smoke to be kept within the range of + / - 0.003dB/m

12．        The temperature rise rate of smoke fire alarm test: 0.2 K /min, 1 K /min, 3 K /min, 5 K /min, 10 K /min, 20 K /min, 30 K /min and the error meets the standard requirements

13．        Maximum temperature: 160 ° C (applicable to detector categories A1, A2, B, C, D, e, F, G, s, R)

14．        Computer: including industrial control computer and display, industrial control computer processor performance i5-9400, memory 8g, hard disk 128G SSD or above, display 23.8 inches.

15．        Test software: Chinese and English

16．        Software function: the equipment has the function of automatic operation detection. Start with one key, and the test process is automatically completed by the program. The process includes automatic wind speed switching, smoke rising control, temperature control, smoke sensing azimuth angle conversion, smoke exhaust, light interference process, test data display, test result storage, etc

17.数据 存储和输出：当 记录警报。每条测试记录包括阈值、冒烟率、 温度、测试方向、序列号和时间。记录表可以是 导出为 CSV 格式。浓度或温度曲线数据可以是 存储，并可存储每个点的浓度或温度值 根据并导出为 CSV 格式。

18.数据 接口：有一个外部数据接口，可以通过 MODBUS 协议。

19.该 烟箱应配备排烟风扇（包括排烟 软管）

20.排除 麦克风
