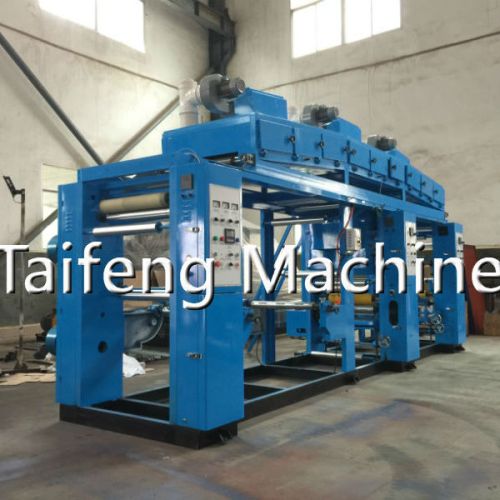

Smoke Paper Printing Machine, Power : 44kw, 46kw

Smoking  paper printing and gluing machinern Introduction Smoke paper printing and gluing machinern Application:It is used to make all kinds of specification's  printing and gluing smoke paper such as smoke paper, threaded paper, brown smoke paper and so on. Feature: 1. Quantity of color printing:1-4. 2. Group of color printing can be selected to add or reduce by customer's requirements, and the both sides of smoke paper can be continuously finished watermark printing and gum gluing at the same time. 3. It will be set a converter motor on main machine. 4. It adopts magnetic clutch and automatic tension system on unwinding section and unwinding traction. 5. It adopts torque motor on rewinding and rewinding traction. 6. It adopts pneumatic system on printing roller, traction roller and scraper blade. 7. Way to install plate: Installation with roller. 8. Ink circulation system. Main technical parameter: Model: TF-PP550 TF-PP700 Diameter of printing plate:100-320mm (It can be customized) Max. width of printing: 550mm 700mm Diameter of rewinding and unwinding : 1000mm 1000mm Speed of printing: 5-60m/min 5-60m/min Heating mode: Electricity Power: 44kw 46kw Weight : 3000KG 4000KG Dimension (L*W*H):6000*1100*2500 6000*1500*2500
